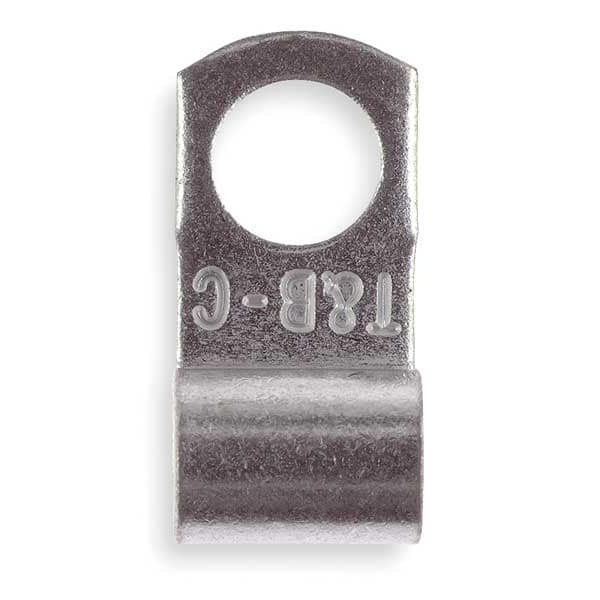

Terminales de anillo no aislados de calibre 12-10, con tornillo #10, paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Seam | Overlapped |
| Standards | CSA Certified, UL Listed |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Tongue Width - Wire Connector | 0.31 in |
| Overall Length | 0.66 in |
| Item | Ring Terminal |
| Max. Temp. | 302 deg F |
| Features | Flag terminals allow a 90 degree connection to the terminal block without bending the wire.; Application Tools: ERG4004; Alternate Package Qty: C53 |
| Terminal Type | Flag |
| Minimum Wire Size | 12 AWG |
| Tongue Thickness | 0.04 in |
| Insulation Coverage | None |
| Barrel Length | Not Applicable |
| Minimum Operating Temperature | 302 deg F |
| Maximum Operating Temperature | 302 deg F |
| Insulation Material | None |
| Maximum Voltage | 600 V |
| Tongue Width | 0.31 in |
| Barrel Inside Diameter | Not Applicable |
| Maximum Wire Size | 10 AWG |
| Hole Spacing | 1/4 in |
| Special Features | Flag Terminals Allow a 90 Degree Connection to the Terminal Block Without Bending the Wire. |
| Terminal Shape | Flag Terminal |
| Barrel Style | Not Applicable |
| Contact Finish | Tin |
| Connection Orientation | 90 Degrees Angled |
| Barrel Outside Diameter | Not Applicable |
| Seam Style | Brazed |
| Contact Material | Copper |
| Barrel Size | Not Applicable |
| Termination Style | Crimp |
| Color | Metallic |
| Wire Size | 12-10 AWG |
| Standard | UL E9809 |
| Type | Non-Insulated Flag Terminal |
| Package Quantity | 50 |
