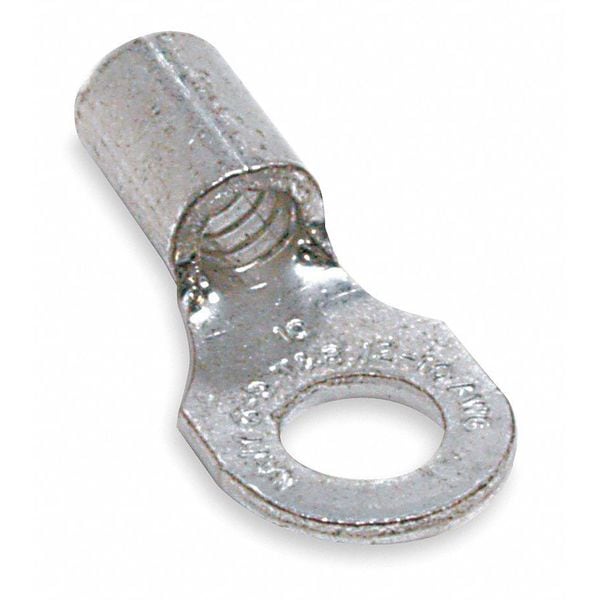

Terminal en anillo no aislado de calibre 12-10 AWG, con perno de 3/8", paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | 3/8 in |
| Insulation Color | Bare |
| Tongue Width - Wire Connector | 0.59 in |
| Connection Material | Copper |
| Terminal Type | Standard |
| Connection Type | Crimp |
| Max. Temp. | 221 deg F |
| Overall Length | 1.1 in |
| Seam | Brazed |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Standards | CSA Certified, UL Listed E9809 |
| Item | Ring Terminal |
| Features | These non-insulated ring terminals are made of electrolytic copper for high conductivity.; They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).; Serrated barrel increases grip on wire.; Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: C73 |
| Hole Spacing | 0.45 in |
| Maximum Wire Size | 10 AWG |
| Terminal Shape | Ring Terminal |
| Contact Finish | Tin |
| Barrel Style | Serrated Barrel |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Barrel Length | 0.35 in |
| Contact Material | Copper |
| Tongue Length | 0.78 in |
| Minimum Operating Temperature | 221 deg F |
| Special Features | High Conductivity, Increased Grip |
| Tongue Width | 0.59 in |
| Insulation Coverage | None |
| Tongue Thickness | 0.04 in |
| Minimum Wire Size | 12 AWG |
| Insulation Material | None |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Product Type | Copper Conductors |
| Seam Style | Brazed |
| Type | Non-Insulated Ring Terminal |
| Flange shape | Ring shape |
| Standard | UL E9809 |
| Wire Size | 12-10 AWG |
| Color | Metallic |
| AWG-range | 12 to 10 |
| Surface protection | Tinned |
| Stud size (imperial) | 3/8 inch |
| Package Quantity | 50 |
