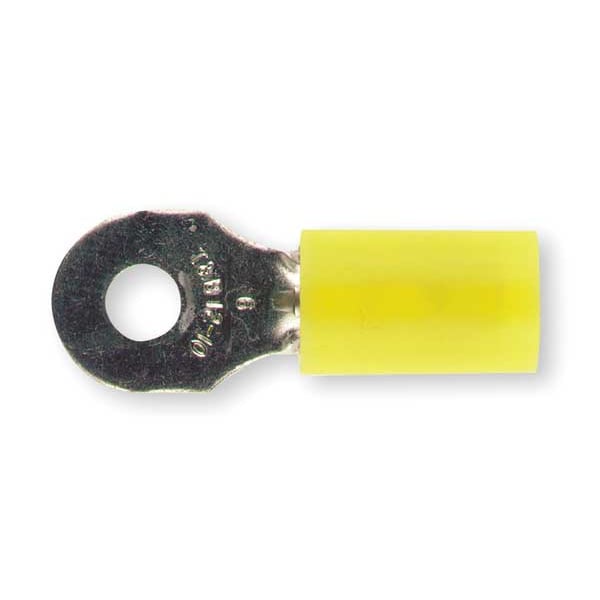

Terminal de anillo de nylon de calibre 12-10 con perno #6, paquete de 50 unidades.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Standards | CSA Certified, UL Listed E9809 |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Item | Ring Terminal |
| Overall Length | 1 in |
| Seam | Overlapped |
| Tongue Width - Wire Connector | 0.37 in |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Features | Self-insulated with high dieletric-strength nylon sleeves.; An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.; Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A; Alternate Package Qty: RC333 |
| Maximum Voltage | 600 V |
| Barrel Length | 0.54 in |
| Barrel Style | Serrated Barrel |
| Special Features | High Dielectric-Strength Nylon Sleeves |
| Insulation Material | Nylon |
| Terminal Shape | Ring Terminal |
| Tongue Length | 0.46 in |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Product Type | Copper Conductors |
| Seam Style | Overlapped |
| Minimum Wire Size | 12 AWG |
| Maximum Wire Size | 10 AWG |
| Contact Material | Copper |
| Minimum Operating Temperature | 221 deg F |
| Hole Spacing | 0.27 in |
| Tongue Thickness | 0.04 in |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Insulation Coverage | Partial Coverage |
| Tongue Width | 0.37 in |
| Flange shape | Ring shape |
| Wire Size | 12-10 AWG |
| Surface protection | Tinned |
| Stud size (imperial) | 6 |
| AWG-range | 12 to 10 |
| Type | Nylon Insulated Ring Terminal |
| Standard | UL E9809 |
| Package Quantity | 50 |
