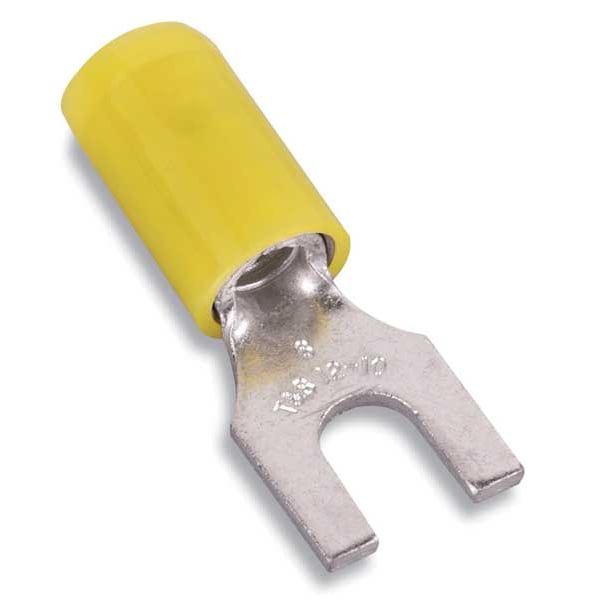

12-10 AWG Vinyl Fork Terminal 1/4" Stud PK50
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed |
| Max. Temp. | 221 deg F |
| Connection Material | Copper |
| Seam | Brazed |
| Item | Fork Terminal |
| Overall Length | 1.15 in |
| Tongue Width - Wire Connector | 1/2 in |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Features | These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point.; Brazed seam barrel is serrated for high pull-out value.; Insulation is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC1167 |
| Insulation Coverage | Partial Coverage |
| Compatible with Series | RC1167 |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Special Features | Fork Terminals Have Extra-Long PVC Insulation Sleeve for Protection and Stress Relief at Wires Flex Point |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Contact Finish | Tin |
| Contact Material | Copper |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145C, WT2000 |
| Minimum Wire Size | 12 AWG |
| Seam Style | Brazed |
| Tongue Width | 1/2 in |
| Terminal Shape | Fork |
| Maximum Operating Temperature | 221 deg F |
| Maximum Wire Size | 10 AWG |
| Insulation Material | Vinyl |
| RoHS Compliant | No |
| Barrel Length | 0.53 in |
| Barrel Style | Insulation Grip |
| Insulation Dia | 0.21 in |
| Wire Size | 12-10 AWG |
| Standard | UL E9809 |
| Insulation | Polyvinyl chloride |
| AWG-range | 12 to 10 |
| Flange shape | Fork shape |
| Stud size (imperial) | 1/4 inch |
| Type | Vinyl Insulated Fork Terminal |
| Surface protection | Tinned |
| Package Quantity | 50 |
