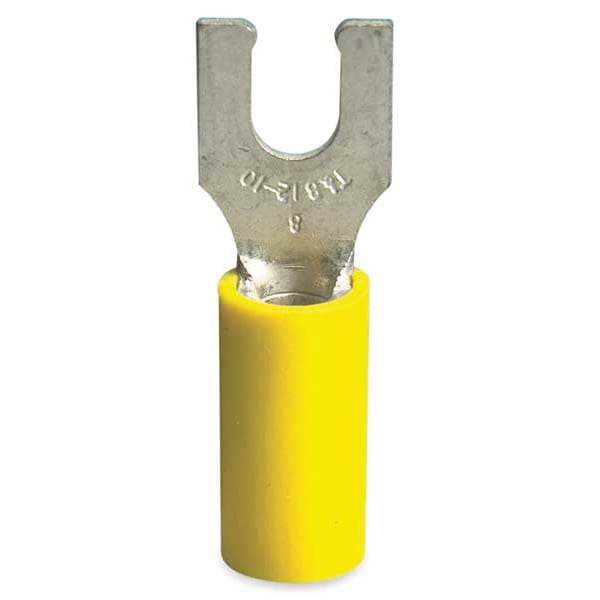

Terminal de horquilla con bloqueo de vinilo de 12-10 AWG para perno #6. Paquete con 50 piezas.
| Wire Range | 12 to 10 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Yellow |
| Connection Type | Crimp |
| Terminal Type | Locking |
| Connection Material | Copper |
| Overall Length | 1.09 in |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Seam | Brazed |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.31 in |
| Max. Voltage | 600 V |
| Features | Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.; Application Tools: ERG4001, WT145C, WT2000, WT112M, WT145C; Alternate Package Qty: RC2207 |
| Barrel Style | Insulation Grip |
| Maximum Wire Size | 10 AWG |
| Compatible with Series | RC2207 |
| Special Features | Locking Fork Terminals Have a Specially Designed Tongue That Lets Them go on Like a Fork and Stay on Like a Ring |
| RoHS Compliant | No |
| Tongue Length | 0.00 - 0.50 inches |
| Maximum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Termination Style | Crimp |
| Minimum Wire Size | 12 AWG |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145C, WT2000 |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Insulation Material | Vinyl |
| Barrel Length | 0.63 in |
| Insulation Coverage | Partial Coverage |
| Contact Material | Copper |
| Tongue Width | 0.31 in |
| Maximum Voltage | 600 V |
| Seam Style | Brazed |
| Terminal Shape | Fork |
| AWG-range | 12 to 10 |
| Flange shape | Fork shape |
| Type | Vinyl Insulated Locking Fork Terminal |
| Surface protection | Tinned |
| Stud size (imperial) | 6 |
| Standard | UL E9809 |
| Insulation | Polyvinyl chloride |
| Wire Size | 12-10 AWG |
| Package Quantity | 50 |
