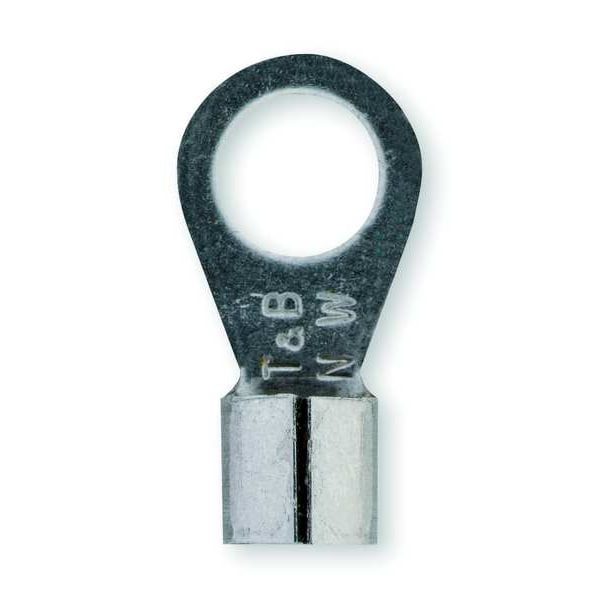

16-14 AWG Non-Insulated Ring Terminal #8 Stud PK100
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Terminal Type | Standard |
| Terminal Connection | Crimp |
| Max. Temp. | 1,200 deg F |
| Item | Ring Terminal |
| Max. Voltage | 600 V |
| Connection Type | Crimp |
| Connection Material | Copper |
| Seam | Brazed |

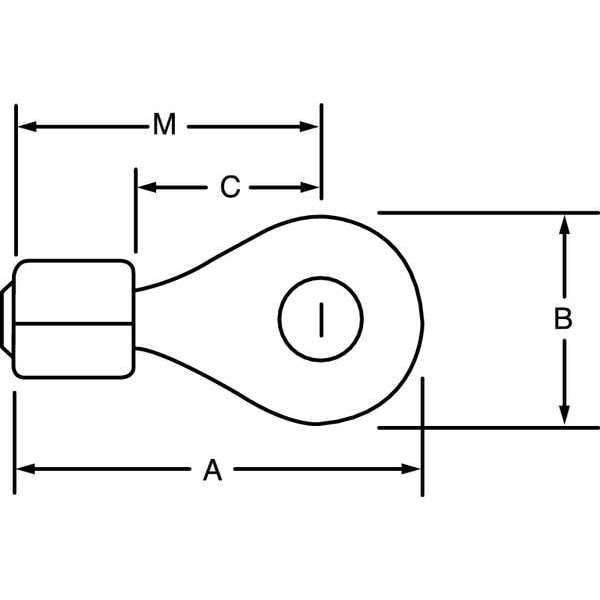

| Tongue Width - Wire Connector | 0.31 in |
| Overall Length | 0.66 in |
| Features | For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.; Application Tools: WT1377 |
| Terminal Shape | Ring Terminal |
| Special Features | Easy Installation, Permanent Terminations of Solid, Round, or Stranded Nichrome Wires |
| Minimum Wire Size | 16 AWG |
| Tongue Length | 0.43 in |
| Minimum Operating Temperature | 1,200 deg F |
| Termination Style | Crimp |
| Seam Style | Brazed |
| Insulation Material | None |
| Tongue Width | 0.31 in |
| Maximum Wire Size | 14 AWG |
| Hole Spacing | 0.28 in |
| Maximum Operating Temperature | 1,200 deg F |
| Compatible with Product Type | Heaters, Toasters |
| Maximum Voltage | 600 V |
| Tongue Thickness | 0.04 in |
| Contact Material | Nickel Alloy |
| Contact Finish | Plain |
| Insulation Coverage | None |
| Barrel Length | 0.23 in |
| Compatible with Series | NW |
| Flange shape | Ring shape |
| Wire Size | 16-14 AWG |
| Type | Non-Insulated Ring Terminal |
| AWG-range | 16 to 14 |
| Stud size (imperial) | 8 |
| Surface protection | Bare |
| Color | Metallic |
| Package Quantity | 100 |
