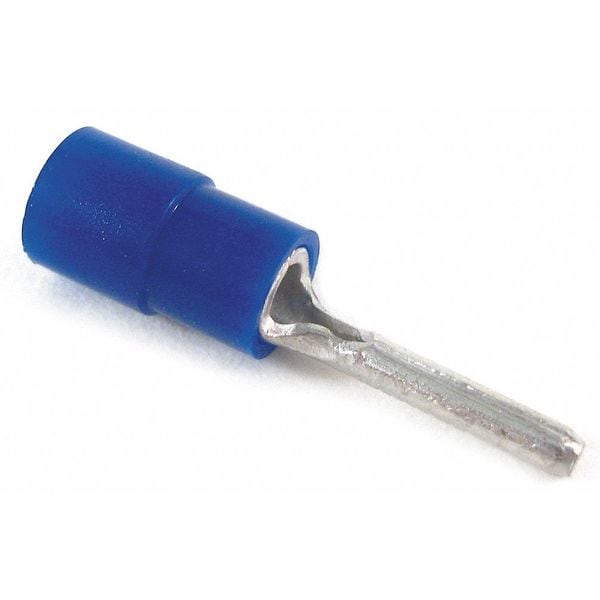

Terminal de clavija de vinilo de calibre 16-14, paquete de 100.
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Insulation Color | Blue |
| Max. Temp. | 221 deg F |
| Seam | Brazed |
| Barrel Inside Dia. | 0.075 in |
| Connection Material | Copper |
| Overall Length | 0.86 in |
| Item | Pin Terminal |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Terminal Type | Pin |
| Features | Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.; Application Tools: ERG4001; Alternate Package Qty: RB47PT |
| Special Features | Provides An Easy and Effective Way to Terminate Stranded Wire Into European/Metric-Style Terminal Blocks |
| Barrel Inside Diameter | 0.075 in |
| Maximum Operating Temperature | 221 deg F |
| Compatible Manufacturer Model Number | ERG4001 |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 16 AWG |
| Contact Finish | Tin |
| Seam Style | Brazed |
| Maximum Wire Size | 14 AWG |
| Pin Diameter | 0.075 in |
| Insulation Material | Vinyl |
| Pin Length | 0.39 in |
| Contact Material | Copper |
| AWG-range | 16 to 14 |
| Surface protection | Tinned |
| Flange shape | Pin shape |
| Insulation | Polyvinyl chloride |
| Type | Vinyl Insulated Pin Terminal |
| Wire Size | 16-14 AWG |
| Voltage Rating | 300 V |
| Package Quantity | 100 |
