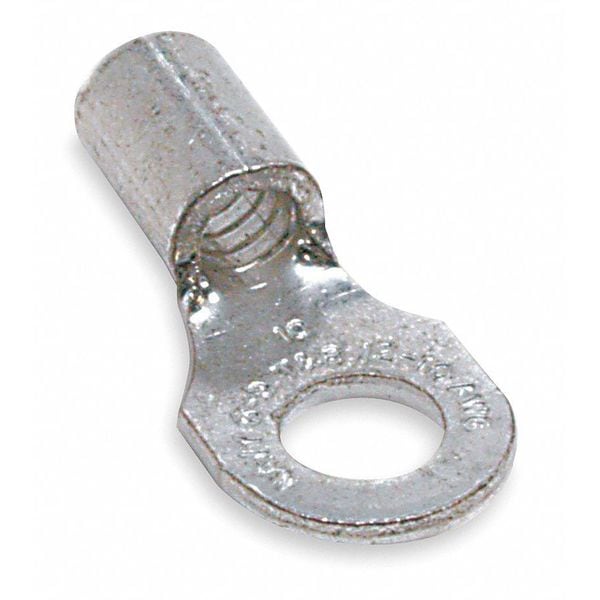

Terminal de anillo no aislado para cable calibre 18-14 con perno de tamaño #6, paquete de 100 unidades.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #6 |
| Insulation Color | Bare |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Connection Material | Copper |
| Terminal Type | Standard |
| Standards | CSA Certified, UL Listed E9809 |
| Seam | Brazed |
| Overall Length | 0.72 in |
| Item | Ring Terminal |
| Tongue Width - Wire Connector | 1/4 in |
| Terminal Connection | Crimp |
| Max. Voltage | 600 V |
| Features | These non-insulated ring terminals are made of electrolytic copper for high conductivity.; They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire).; Serrated barrel increases grip on wire.; Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: B133 |
| Maximum Operating Temperature | 221 deg F |
| Terminal Shape | Ring Terminal |
| Tongue Length | 0.4 in |
| Special Features | High Conductivity, Increased Grip |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 18 AWG |
| Seam Style | Brazed |
| Minimum Operating Temperature | 221 deg F |
| Contact Finish | Tin |
| Compatible with Product Type | Copper Conductors |
| Contact Material | Copper |
| Insulation Coverage | None |
| Hole Spacing | 0.27 in |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 14 AWG |
| Barrel Length | 0.32 in |
| Termination Style | Crimp |
| Insulation Material | None |
| Tongue Width | 1/4 in |
| Barrel Style | Serrated Barrel |
| Standard | UL E9809 |
| AWG-range | 18 to 14 |
| Wire Size | 18-14 AWG |
| Flange shape | Ring shape |
| Color | Metallic |
| Stud size (imperial) | 6 |
| Surface protection | Tinned |
| Type | Non-Insulated Ring Terminal |
| Package Quantity | 100 |
