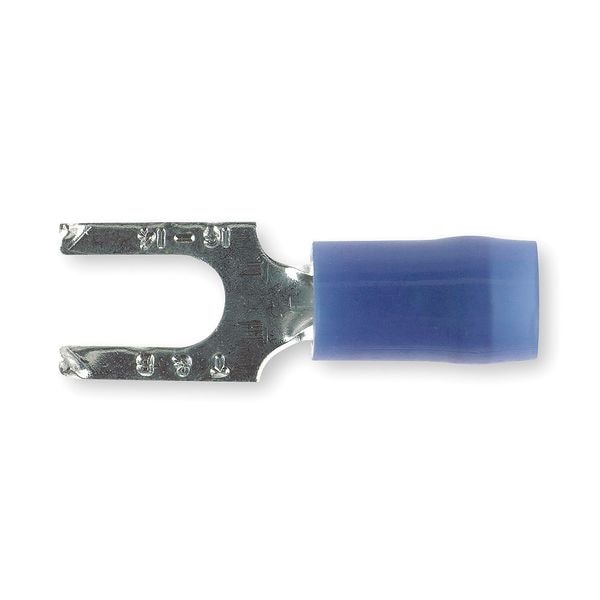

18-14 AWG Nylon Flanged Fork Terminal #8 Stud PK100
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Blue |
| Item | Fork Terminal |
| Connection Material | Copper |
| Tongue Width - Wire Connector | 0.31 in |
| Terminal Type | Flanged |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Seam | Overlapped |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Terminal Connection | Crimp |
| Overall Length | 0.89 in |
| Features | Fork terminals allow easy installation because screw needs only to be loosened.; A flanged-tongue fork with turned up tips provide fo extra holding protection.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RB1223 |
| Contact Material | Copper |
| Maximum Wire Size | 14 AWG |
| Compatible with Series | RB1223 |
| Tongue Width | 0.31 in |
| Barrel Style | Insulation Grip |
| Special Features | Flanged-Tongue Fork With Turned Up Tips Provide Of Extra Holding Protection, Fork Terminals Allow Easy Installation Because Screw Needs only to be Loosened |
| Seam Style | Brazed |
| Insulation Material | Nylon |
| Barrel Length | 0.43 in |
| Contact Finish | Tin |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145A, WT145C, WT2000 |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Minimum Wire Size | 18 AWG |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Maximum Operating Temperature | 221 deg F |
| Tongue Length | 0.00 - 0.50 inches |
| Insulation Coverage | Partial Coverage |
| RoHS Compliant | No |
| Terminal Shape | Fork |
| Standard | UL E9809 |
| Wire Size | 18-14 AWG |
| Flange shape | Fork shape |
| AWG-range | 18 to 14 |
| Type | Nylon Insulated Flanged Fork Terminal |
| Surface protection | Tinned |
| Insulation | PA |
| Stud size (imperial) | 8 |
| Package Quantity | 100 |
