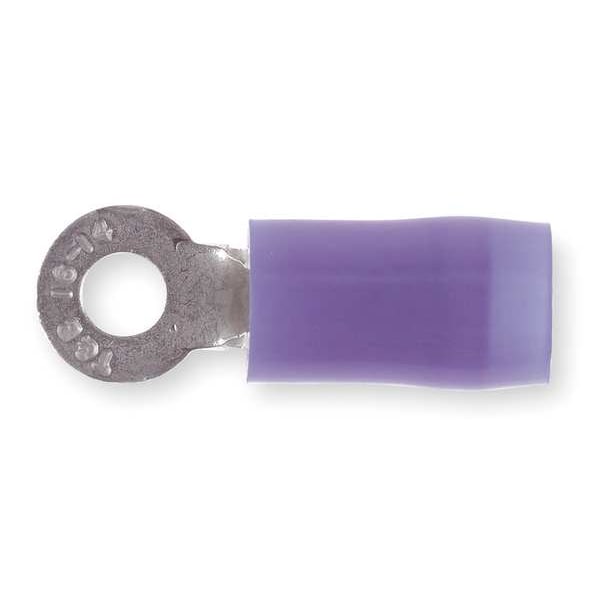

Terminal de anillo de nylon de calibre 18-14, para perno #4, paquete con 100 piezas.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #4 |
| Insulation Color | Blue |
| Standards | CSA Certified, UL Listed E9809 |
| Connection Material | Copper |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Overall Length | 0.72 in |
| Item | Ring Terminal |
| Seam | Overlapped |
| Tongue Width - Wire Connector | 0.26 in |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Features | Self-insulated with high dieletric-strength nylon sleeves.; An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.; Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A; Alternate Package Qty: RB1323 |
| Maximum Voltage | 600 V |
| Barrel Length | 0.45 in |
| Insulation Coverage | Partial Coverage |
| Minimum Wire Size | 18 AWG |
| Contact Material | Copper |
| Tongue Width | 0.26 in |
| Maximum Operating Temperature | 221 deg F |
| Minimum Operating Temperature | 221 deg F |
| Tongue Thickness | 0.03 in |
| Special Features | High Dielectric-Strength Nylon Sleeves |
| Termination Style | Crimp |
| Maximum Wire Size | 14 AWG |
| Tongue Length | 0.27 in |
| Insulation Material | Nylon |
| Compatible with Product Type | Copper Conductors |
| Barrel Style | Serrated Barrel |
| Contact Finish | Tin |
| Hole Spacing | 0.14 in |
| Terminal Shape | Ring Terminal |
| Seam Style | Overlapped |
| Insulation Dia | 0.162 in |
| Standard | UL E9809 |
| Type | Nylon Insulated Ring Terminal |
| Flange shape | Ring shape |
| AWG-range | 18 to 14 |
| Surface protection | Tinned |
| Wire Size | 18-14 AWG |
| Package Quantity | 100 |
