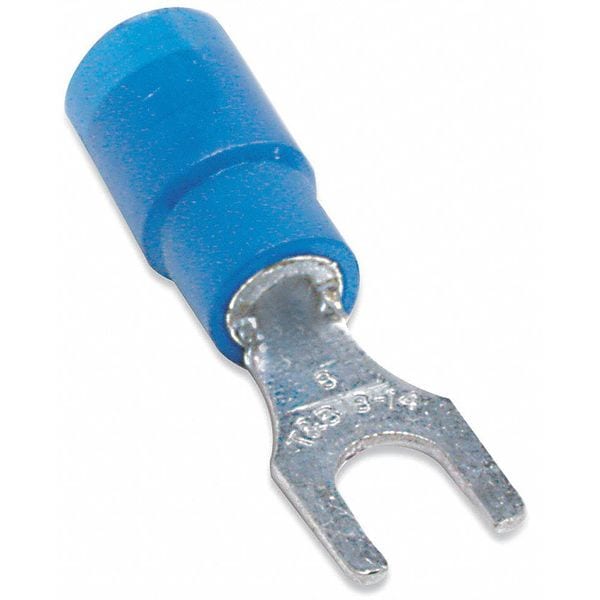

18-14 AWG Vinyl Fork Terminal #10 Stud PK100
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Max. Temp. | 221 deg F |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Item | Fork Terminal |
| Tongue Width - Wire Connector | 0.31 in |
| Overall Length | 0.97 in |
| Terminal Connection | Crimp |
| Terminal Type | Standard |
| Connection Material | Copper |
| Features | These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wires flex point.; Brazed seam barrel is serrated for high pull-out value.; Insulation is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RB1157 |
| Maximum Operating Temperature | 221 deg F |
| RoHS Compliant | No |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145C, WT2000 |
| Contact Material | Copper |
| Special Features | Fork Terminals Have Extra-Long PVC Insulation Sleeve for Protection and Stress Relief at Wires Flex Point |
| Tongue Width | 0.31 in |
| Seam Style | Brazed |
| Barrel Style | Insulation Grip |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Maximum Voltage | 600 V |
| Minimum Wire Size | 18 AWG |
| Barrel Length | 0.54 in |
| Tongue Length | 0.00 - 0.50 inches |
| Insulation Material | Vinyl |
| Contact Finish | Tin |
| Compatible with Series | RB1157 |
| Termination Style | Crimp |
| Maximum Wire Size | 14 AWG |
| Insulation Coverage | Partial Coverage |
| Terminal Shape | Fork |
| Insulation Dia | 0.17 in |
| Surface protection | Tinned |
| Standard | UL E9809 |
| Insulation | Polyvinyl chloride |
| Wire Size | 18-14 AWG |
| Flange shape | Fork shape |
| Stud size (imperial) | 10 |
| Type | Vinyl Insulated Fork Terminal |
| AWG-range | 18 to 14 |
| Package Quantity | 100 |
