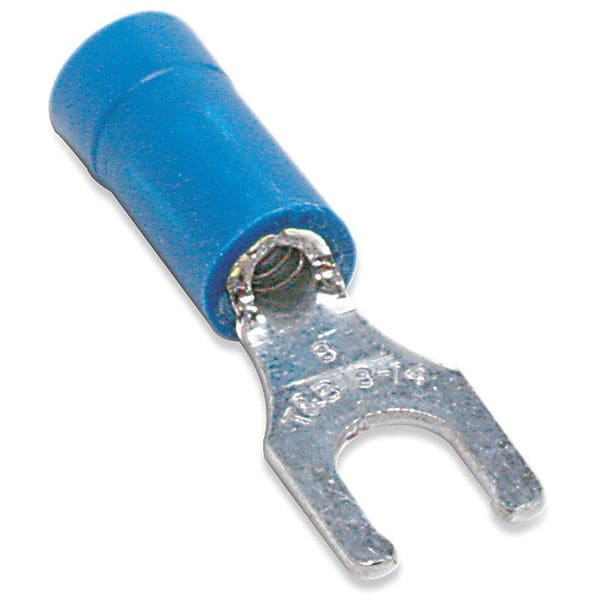

Terminal de horquilla con bloqueo de vinilo de calibre 18-14, con perno #10. Paquete de 100 unidades.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #10 |
| Insulation Color | Blue |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Seam | Brazed |
| Standards | CSA Certified, UL Listed |
| Tongue Width - Wire Connector | 0.29 in |
| Max. Temp. | 221 deg F |
| Overall Length | 0.97 in |
| Terminal Type | Locking |
| Item | Fork Terminal |
| Features | Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.; Application Tools: ERG4001, WT145C, WT2000, WT112M, WT145C; Alternate Package Qty: RB2257 |
| Tongue Width | 0.29 in |
| Maximum Voltage | 600 V |
| Insulation Dia | 0.17 in |
| Insulation | Polyvinyl chloride |
| Surface protection | Tinned |
| Flange shape | Fork shape |
| Standard | UL E9809 |
| AWG-range | 18 to 14 |
| Stud size (imperial) | 10 |
| Type | Vinyl Insulated Locking Fork Terminal |
| Wire Size | 18-14 AWG |
| Special Features | Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring. |
| Seam Style | Brazed |
| Maximum Wire Size | 14 AWG |
| Minimum Wire Size | 18 AWG |
| Package Quantity | 100 |
