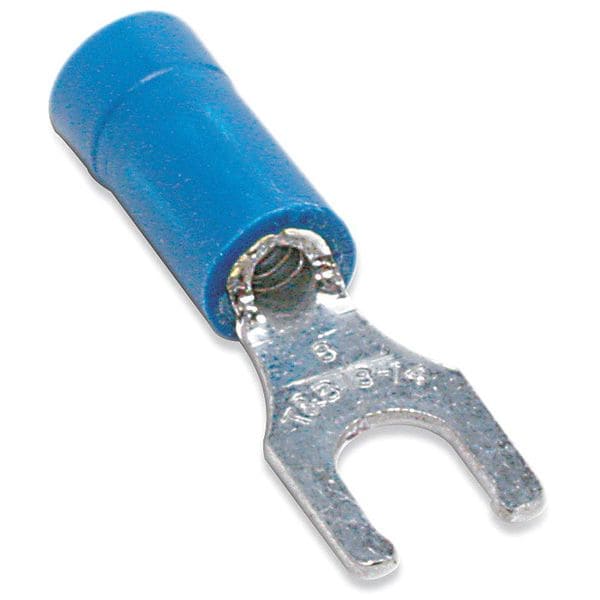

Terminal de horquilla de bloqueo de vinilo de calibre 18-14, con tornillo #6, paquete de 100 unidades.
| Wire Range | 18 to 14 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | #6 |
| Insulation Color | Blue |
| Terminal Connection | Crimp |
| Overall Length | 0.97 in |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Tongue Width - Wire Connector | 1/4 in |
| Standards | CSA Certified, UL Listed |
| Connection Type | Crimp |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Terminal Type | Locking |
| Connection Material | Copper |
| Features | Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.; Application Tools: ERG4001, WT145C, WT2000, WT112M, WT145C; Alternate Package Qty: RB2207 |
| Maximum Wire Size | 14 AWG |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145C, WT2000 |
| Contact Material | Copper |
| Seam Style | Brazed |
| Terminal Shape | Fork |
| Termination Style | Crimp |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Insulation Material | Vinyl |
| Insulation Coverage | Partial Coverage |
| Tongue Length | 0.00 - 0.50 inches |
| Special Features | Locking Fork Terminals Have a Specially Designed Tongue That Lets Them go on Like a Fork and Stay on Like a Ring |
| RoHS Compliant | No |
| Barrel Style | Insulation Grip |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Tongue Width | 1/4 in |
| Minimum Wire Size | 18 AWG |
| Compatible with Series | RB2207 |
| Barrel Length | 0.54 in |
| Insulation Dia | 0.17 in |
| Standard | UL E9809 |
| Wire Size | 18-14 AWG |
| Stud size (imperial) | 6 |
| Flange shape | Fork shape |
| Type | Vinyl Insulated Locking Fork Terminal |
| Surface protection | Tinned |
| AWG-range | 18 to 14 |
| Insulation | Polyvinyl chloride |
| Package Quantity | 100 |
