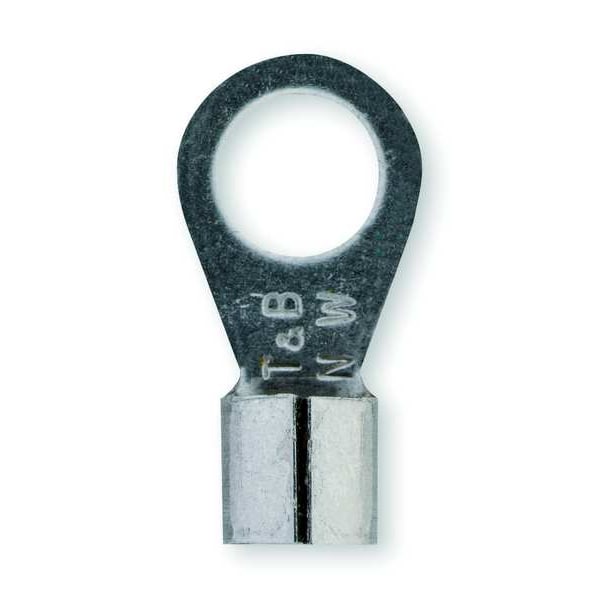

Terminal de anillo sin aislamiento de calibre 20-18 para perno #8, paquete de 1000 unidades.
| Wire Range | 20 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #10 |
| Insulation Color | Bare |
| Terminal Type | Standard |
| Max. Voltage | 600 V |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.31 in |
| Connection Type | Crimp |
| Connection Material | Copper |
| Seam | Brazed |
| Overall Length | 0.63 in |
| Item | Ring Terminal |
| Max. Temp. | 1,200 deg F |
| Features | For easily installed, permanent terminations of solid, round, or stranded nichrome wires as used in toasters, heaters, etc.; Application Tools: WT1377 |
| Maximum Voltage | 600 V |
| Tongue Length | 0.4 in |
| Compatible with Series | NW |
| Terminal Shape | Ring Terminal |
| Barrel Length | 0.1 in |
| Insulation Coverage | None |
| Insulation Material | None |
| Minimum Operating Temperature | 1,200 deg F |
| Tongue Width | 0.31 in |
| Tongue Thickness | 0.03 in |
| Maximum Wire Size | 18 AWG |
| Minimum Wire Size | 20 AWG |
| Maximum Operating Temperature | 1,200 deg F |
| Hole Spacing | 0.28 in |
| Contact Material | Nickel Alloy |
| Seam Style | Brazed |
| Termination Style | Crimp |
| Special Features | Easy Installation, Permanent Terminations of Solid, Round, or Stranded Nichrome Wires |
| Contact Finish | Plain |
| Compatible with Product Type | Heaters, Toasters |
| Wire Size | 20-18 AWG |
| Flange shape | Ring shape |
| Type | Non-Insulated Ring Terminal |
| AWG-range | 20 to 18 |
| Color | Metallic |
| Surface protection | Nickel-plated |
| Stud size (imperial) | 10 |
| Package Quantity | 1000 |
