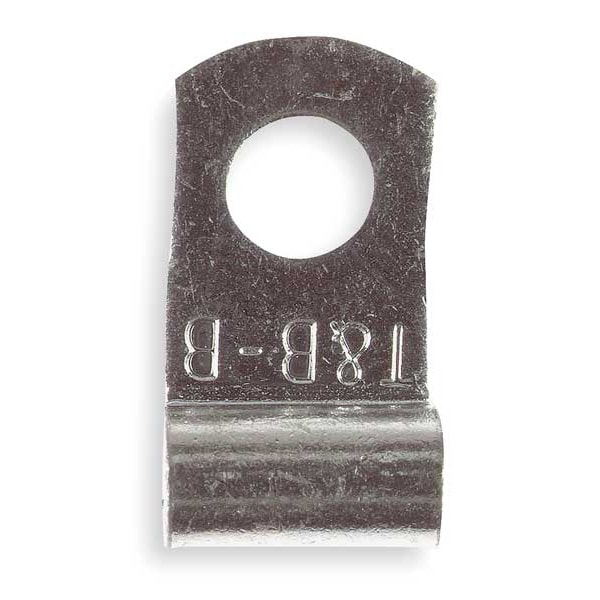

Terminal de anillo no aislado de calibre 22-14 para perno de calibre #8, paquete con 100 piezas.
| Wire Range | 22 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Stud Size | #8 |
| Insulation Color | Bare |
| Max. Voltage | 600 V |
| Max. Temp. | 302 deg F |
| Connection Type | Crimp |
| Seam | Overlapped |
| Connection Material | Copper |
| Overall Length | 0.55 in |
| Tongue Width - Wire Connector | 0.39 in |
| Standards | CSA Certified, UL Listed E9809 |
| Terminal Connection | Crimp |
| Item | Ring Terminal |
| Terminal Type | Flag |
| Maximum Voltage | 600 V |
| Type | Non-Insulated Flag Terminal |
| Wire Size | 22-14 AWG |
| Standard | UL E9809 |
| Special Features | Flag terminals allow a 90 degree connection to the terminal block without bending the wire. |
| Color | Metallic |
| Termination Style | Crimp |
| Contact Material | Copper |
| Seam Style | Overlapped |
| Tongue Width | 0.39 in |
| Minimum Wire Size | 22 AWG |
| Maximum Wire Size | 14 AWG |
| Package Quantity | 100 |
