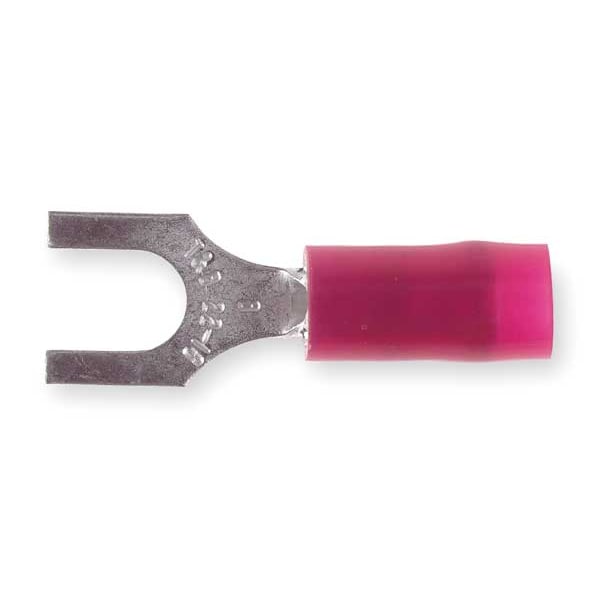

Terminal de horquilla de nailon para cable de calibre 22-16, de tamaño #8, paquete con 100 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Nylon |
| Stud Size | #8 |
| Insulation Color | Red |
| Terminal Connection | Crimp |
| Item | Fork Terminal |
| Max. Voltage | 600 V |
| Seam | Overlapped |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed |
| Connection Material | Copper |
| Terminal Type | Standard |
| Max. Temp. | 221 deg F |
| Tongue Width - Wire Connector | 1/4 in |
| Overall Length | 0.83 in |
| Features | Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep.; Nylon jacket is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RA1123 |
| Barrel Length | 0.46 in |
| Insulation Material | Nylon |
| RoHS Compliant | No |
| Special Features | Inner Bronze Insulation Grip Sleeve Lengthens Flex Radius of Conductor and Eliminates Conductor Creep |
| Minimum Wire Size | 22 AWG |
| Compatible with Series | RA1123 |
| Barrel Style | Insulation Grip |
| Tongue Width | 1/4 in |
| Insulation Coverage | Partial Coverage |
| Contact Finish | Tin |
| Contact Material | Copper |
| Compatible Manufacturer Model Number | ERG4001, WT112M, WT145A, WT145C, WT2000 |
| Termination Style | Crimp |
| Seam Style | Brazed |
| Maximum Wire Size | 16 AWG |
| Maximum Operating Temperature | 221 deg F |
| Maximum Voltage | 600 V |
| Tongue Length | 0.00 - 0.50 inches |
| Compatible with Product Type | Crimper, Ratchet Crimper |
| Terminal Shape | Fork |
| Insulation Dia | 0.136 in |
| Flange shape | Fork shape |
| Insulation | PA |
| Surface protection | Tinned |
| Type | Nylon Insulated Fork Terminal |
| Wire Size | 22-16 AWG |
| Stud size (imperial) | 8 |
| AWG-range | 22 to 16 |
| Standard | UL E9809 |
| Package Quantity | 100 |
