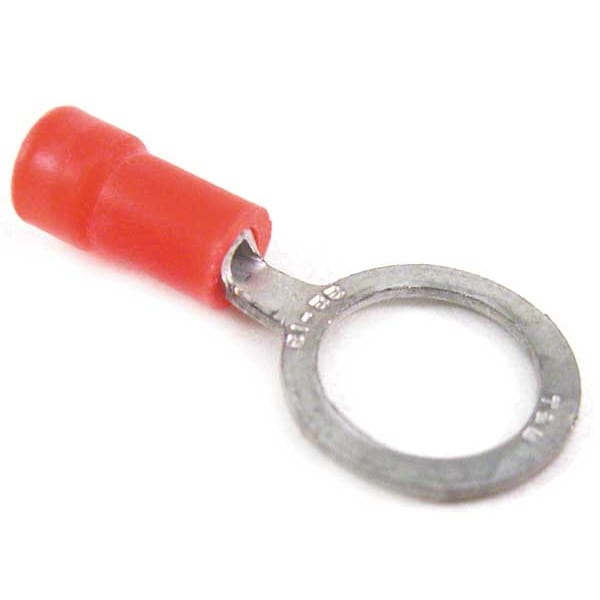

Terminal de anillo de vinilo 22-16 AWG, con perno de 1/4", paquete de 100 unidades.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 1/4 in |
| Insulation Color | Red |
| Max. Temp. | 221 deg F |
| Item | Ring Terminal |
| Seam | Brazed |
| Connection Material | Copper |
| Terminal Connection | Crimp |
| Connection Type | Crimp |
| Standards | CSA Certified, UL Listed E9809 |
| Tongue Width - Wire Connector | 1/2 in |
| Max. Voltage | 600 V |
| Terminal Type | Standard |
| Overall Length | 1.13 in |
| Features | These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point.; Brazed seam barrel is serrated to obtain high pull-out value.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA717 |
| Tongue Thickness | 0.03 in |
| Termination Style | Crimp |
| Special Features | Protection and Relieve Bending Stress At Wires Flex Point |
| Contact Material | Copper |
| Compatible with Product Type | Copper Conductors |
| Barrel Style | Serrated Barrel |
| Maximum Operating Temperature | 221 deg F |
| Tongue Length | 0.62 in |
| Minimum Wire Size | 22 AWG |
| Terminal Shape | Ring Terminal |
| Seam Style | Brazed |
| Insulation Coverage | Partial Coverage |
| Minimum Operating Temperature | 221 deg F |
| Barrel Length | 0.51 in |
| Maximum Wire Size | 18 AWG |
| Tongue Width | 1/2 in |
| Hole Spacing | 0.37 in |
| Maximum Voltage | 600 V |
| Contact Finish | Tin |
| Insulation Material | Vinyl |
| Insulation Dia | 0.15 in |
| Surface protection | Tinned |
| Wire Size | 22-16 AWG |
| Flange shape | Ring shape |
| AWG-range | 22 to 16 |
| Type | Vinyl Insulated Ring Terminal |
| Standard | UL E9809 |
| Stud size (imperial) | 1/4 inch |
| Package Quantity | 100 |
