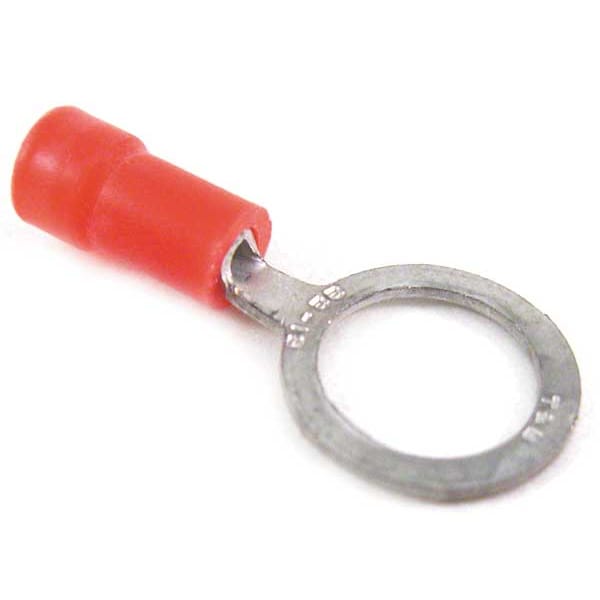

Terminal de anillo de vinilo de calibre 22-16, con perno de 3/8". Paquete con 100 piezas.
| Wire Range | 22 to 16 AWG |
|---|---|
| Insulation Type | Vinyl |
| Stud Size | 3/8 in |
| Insulation Color | Red |
| Connection Type | Crimp |
| Connection Material | Copper |
| Max. Voltage | 600 V |
| Overall Length | 1.24 in |
| Terminal Type | Standard |
| Seam | Brazed |
| Standards | CSA Certified, UL Listed E9809 |
| Terminal Connection | Crimp |
| Tongue Width - Wire Connector | 0.54 in |
| Item | Ring Terminal |
| Max. Temp. | 221 deg F |
| Features | Serrated barrel |
| Contact Material | Copper |
| Insulation Coverage | Partial Coverage |
| Maximum Wire Size | 18 AWG |
| Minimum Operating Temperature | 221 deg F |
| Minimum Wire Size | 22 AWG |
| Seam Style | Brazed |
| Contact Finish | Tin |
| Barrel Length | 0.54 in |
| Tongue Thickness | 0.03 in |
| Maximum Voltage | 600 V |
| Insulation Material | Vinyl |
| Special Features | Protection and Relieve Bending Stress At Wires Flex Point |
| Maximum Operating Temperature | 221 deg F |
| Compatible with Product Type | Copper Conductors |
| Hole Spacing | 0.37 in |
| Termination Style | Crimp |
| Terminal Shape | Ring Terminal |
| Tongue Width | 1/4 in |
| Tongue Length | 0.7 in |
| Barrel Style | Serrated Barrel |
| Wire Size | 22-16 AWG |
| Stud size (imperial) | 3/8 inch |
| Type | Vinyl Insulated Ring Terminal |
| Flange shape | Ring shape |
| Standard | UL E9809 |
| AWG-range | 22 to 18 |
| Surface protection | Tinned |
| Package Quantity | 100 |
