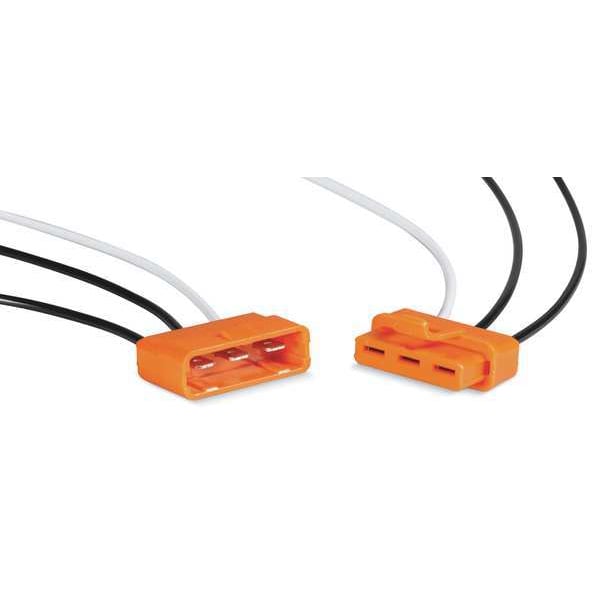

Desconector de balasto, 18AWG, 3 puertos, 1.28", paquete de 2
| Item | Ballast Disconnect |
|---|---|
| Wire Size | 18 AWG |
| Material | Brass |
| Color | Orange |
| Insulation Color | Orange |
| Insulation Type | Polycarbonate |
| Connection Type | Twist On |
| Overall Length | 1.28 in |
| Number of Ports | 3 |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Male/Female | 2 Male/2 Female |
| Connection Material | Tin-Plated Brass |
| Features | 6 in Wire Leads |
| Standards | CEC Part I Rule 30-308(4), NEC 410.73 (G) |
| Application | New Installation, Retrofit |
| Contact Material | Tin-Plated Brass |
| Maximum Current | 4 A |
| Insulation Material | Polycarbonate |
| Housing Material | Brass |
| UL 94 Flammability Rating | V-2 |
| Number of Pieces | 20 |
| Contact Type | Plug to Socket, Socket to Plug |
| For Conductor Material | Copper |
| Compatible with Series | 3 |
| Maximum Voltage | 600 V |
| Gender | 2 Male/2 Female |
| Special Features | Finger-Safe Line Side Prevents Installer From Touching Hot Contacts, Fits Through 1/2 in Knockout, Fool-Proof Design |
| Includes | (1) Installation Instructions, (2) Female Load Half, (2) Male Line Half |
| Maximum Operating Temperature | 105 deg F |
| Surface Finishing | Tin Plated |
| Current Rating | 4A |
| Voltage Rating | 600 V |
| Special Functions | Oversized electrical contacts improve conductivity and reduce temperature rise. Integral wire leads ease installation. Fool-proof design enables mating halves to be installed in only one way. Finger-safe line side prevents installer from touching hot contacts. Rounded compact design small enough to be used in compact applications - fits through 1/2 knockout." |
| Product Type | Disconnect |
| Product Name | disconnect, electrical con, splice |
| Standard | UL E307134 |
| Amperage Rating | 4 A |
| Package Quantity | 2 |
