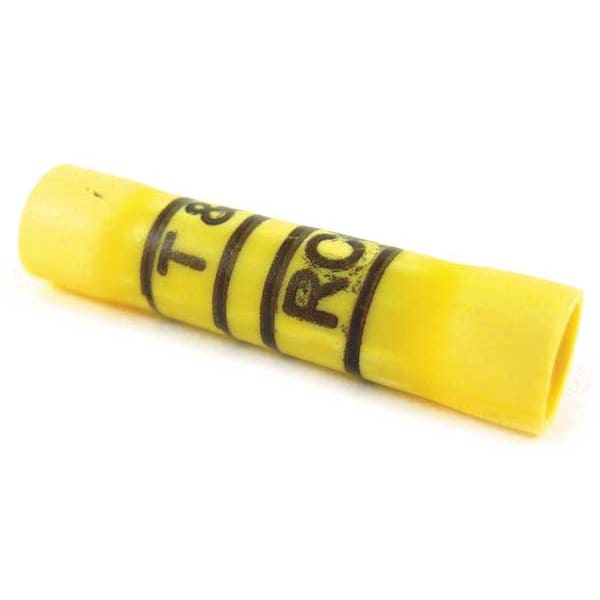

Butt Splice Connector, 12-10 AWG, Yel, PK50
| Item | Splice Connector |
|---|---|
| Wire Range | 12 to 10 AWG |
| Insulation Type | Vinyl |
| Seam | Brazed |
| Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Yellow |
| Color | Yellow |
| Max. Voltage | 600 V |
| Overall Length | 1.31 in |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 1/4 in |
| Connection Material | Brass |
| Standards | UL E9809 |
| Connector Type | Butt Splice |
| Voltage Rating | 600 V |
| Contact Material | Copper |
| Body Material | Copper |
| Barrel Inside Diameter | 1/4 in |
| Insulation Material | Vinyl |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 12 AWG |
| Maximum Voltage | 600 V |
| For Maximum Wire Insulation Diameter | 1/4 in |
| Body Finish | Tin Plated |
| Compatible Installation Tool Model Number | ERG4001, WT112M, WT145C, WT2000 |
| Termination Style | Crimp |
| Seam Style | Brazed |
| Maximum Operating Temperature | 221 deg F |
| Overall Width | 0.31 in |
| Features | In butt splices, the wires are butted together and crimped at each end of the splice.; These splices are color-coded according to wire size.; Application Tools: WT145C, WT2000, WT112M, ERG4001 |
| Type | Butt Splice |
| Finish | Electro -Tin Plated |
| Temperature Rating | 105 C |
| Standard | UL E9809 |
| Special Features | In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size. |
| Surface protection | Tinned |
| AWG-range | 12 to 10 |
| Package Quantity | 50 |
