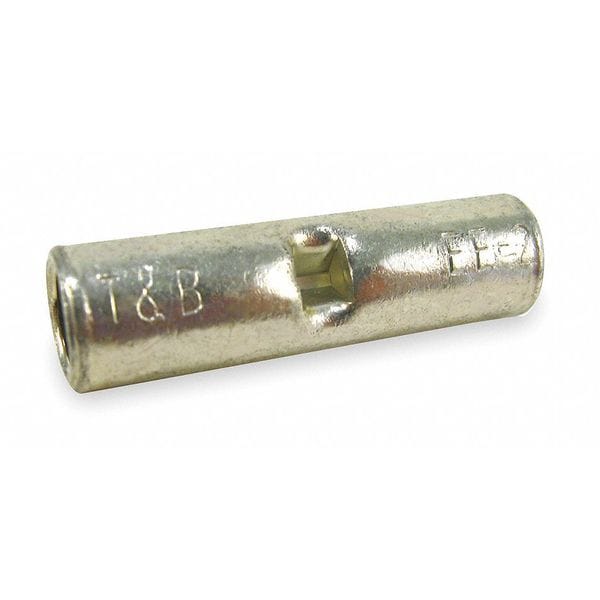

Butt Splice Connector, 16-14 AWG, PK100
| Item | Splice Connector |
|---|---|
| Wire Range | 16 to 14 AWG |
| Insulation Type | Non-Insulated |
| Seam | Brazed |
| Material | Copper |
| Connection Type | Crimp |
| Insulation Color | Bare |
| Color | Metallic |
| Max. Voltage | 600 V |
| Overall Length | 0.63 in |
| Max. Temp. | 221 deg F |
| Standards | UL E9809 |
| Connection Material | Copper |
| Barrel Inside Dia. | 0.16 in |
| Connector Type | Butt Splice |
| Voltage Rating | 600V |
| Maximum Operating Temperature | 302 deg F |
| Contact Material | Copper |
| Insulation Material | None |
| Maximum Voltage | 600 V |
| Body Finish | Tin Plated |
| Barrel Inside Diameter | 0.16 in |
| Termination Style | Crimp |
| Compatible Installation Tool Model Number | ERG4002, WT110M, WT111M, WT112M, WT2000 |
| Body Material | Copper |
| Minimum Wire Size | 18 AWG |
| Maximum Wire Size | 14 AWG |
| Overall Width | 0.16 in |
| Seam Style | Brazed |
| Features | Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002; Alternate Package Qty: BB2 |
| Temperature Rating | 150°C |
| Finish | Tin-Plated |
| A (inches) | 0.62 |
| Flammability Rating | UL 94 V-0 |
| Recommended Tool | ERG4002, ERG4005 |
| Stock Thickness | 0.03 |
| Terminal Series | B |
| Application Tools | WT110M, WT111M, WT112M, WT2000, ERG4002 |
| B (inches) | 0.16 |
| Surface protection | Tinned |
| Type | Butt Splice |
| AWG-range | 18 to 14 |
| Package Quantity | 100 |
