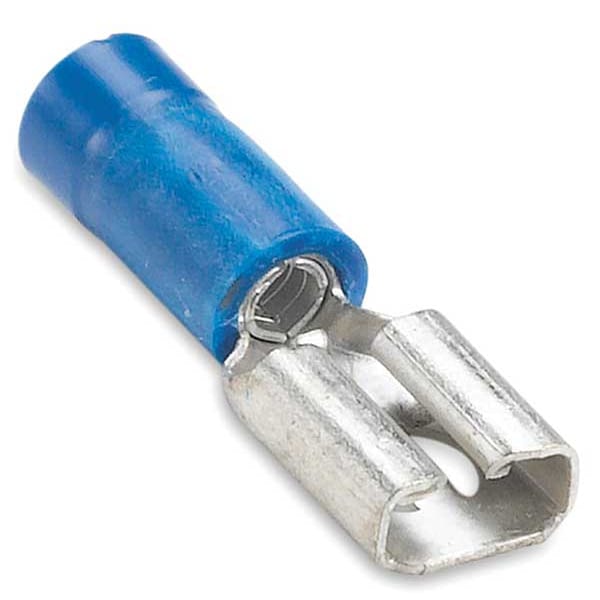

Desconexión hembra, azul, 16-14AWG, paquete con 100 piezas.
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Blue |
| Color | Blue |
| Wire Range | 16 to 14 AWG |
| Connection Type | Crimp |
| Insulation Type | Vinyl |
| Overall Length | 0.85 in |
| Tab Size | 0.032 in x 0.187 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Brass |
| Barrel Inside Dia. | 0.086 in |
| Standards | UL E66716 |
| Features | Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RBD1837 |
| Insulation Material | Vinyl |
| Tab Width | 0.187 in |
| Maximum Operating Temperature | 221 deg F |
| Barrel Style | Funnel Entry |
| Maximum Wire Size | 14 AWG |
| Terminal Type | Socket |
| Contact Finish | Tin |
| Maximum Voltage | 600 V |
| Insulation Coverage | Partial Coverage |
| Special Features | Quick, Reliable Method of Connection to Terminal Blocks and Boards without the Use of Tools, Unique Construction of the Female Disconnect Offers Long-Term Dependability |
| Seam Style | Brazed |
| Minimum Wire Size | 16 AWG |
| RoHS Compliant | No |
| UL 94 Flammability Rating | Not Rated |
| Termination Style | Crimp |
| Contact Material | Brass |
| Tab Thickness | 0.032 in |
| Barrel Inside Diameter | 0.086 in |
| Barrel Size | Long |
| Maximum Insulation (inches) | 0.17 |
| A (inches) | 0.85 |
| Voltage Rating | 600 V |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| B (inches) | 0.23 |
| Recommended Tool | ERG4001 |
| Stock Thickness | 0.03 |
| Temperature Rating | 105°C |
| Finish | Tin-Plated |
| Terminal Series | RBD |
| Flammability Rating | UL 94 V-0 |
| Disconnect Type | Female - 187 Series |
| Material insulation | Polyvinyl chloride |
| Type | Vinyl Insulated Female Disconnect |
| AWG-range | 16-14 |
| Package Quantity | 100 |
