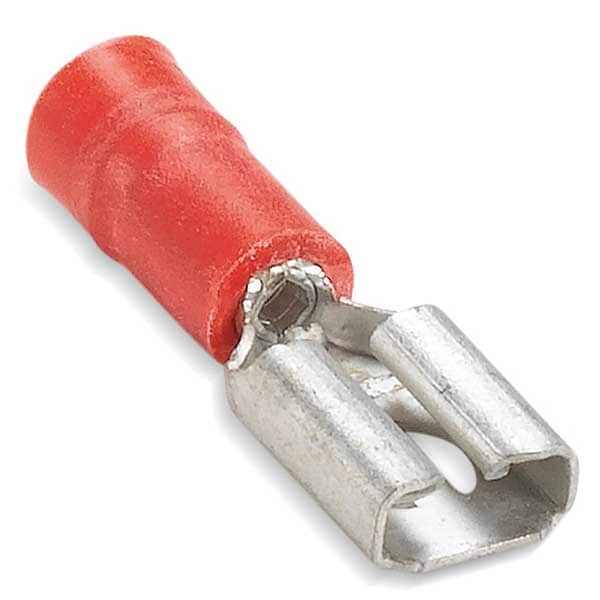

Desconexión hembra, Rojo, 22-18AWG, paquete de 100
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Red |
| Color | Red |
| Insulation Type | Vinyl |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.85 in |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Standards | CSA, RoHS Compliant, UL Listed E66716 |
| Barrel Inside Dia. | 0.06 in |
| Connection Material | Brass |
| Features | Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RAD1827 |
| Terminal Type | Disconnect |
| Disconnect Type | Female - 187 Series |
| Flammability Rating | UL 94 V-0 |
| Voltage Rating | 600 V |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | ERG4001 |
| Terminal Series | RAD |
| Finish | Tin-Plated |
| Temperature Rating | 105°C |
| Stock Thickness | 0.03 |
| Maximum Insulation (inches) | 0.15 |
| A (inches) | 0.85 |
| B (inches) | 0.23 |
| Type | Vinyl Insulated Female Disconnect |
| AWG-range | 22-18 |
| Material insulation | Polyvinyl chloride |
| Standard | UL E66716 |
| Special Features | Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability. |
| Package Quantity | 100 |
