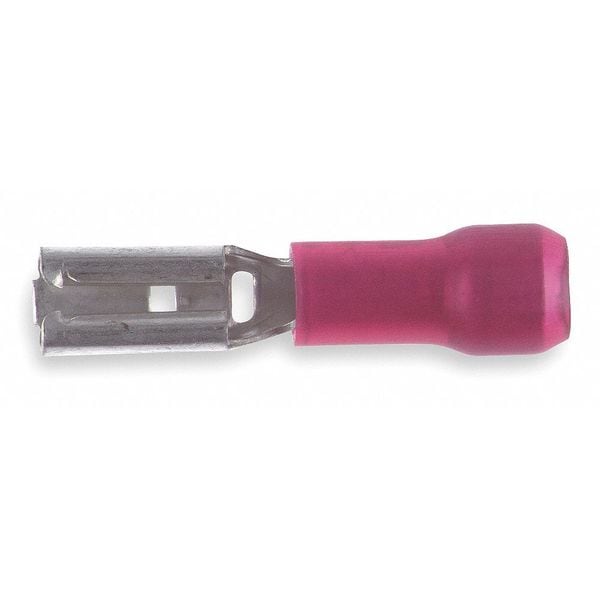

Desconexión hembra, roja, 22 a 18 AWG, paquete con 100 unidades.
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Red |
| Color | Red |
| Connection Type | Crimp |
| Wire Range | 22 to 18 AWG |
| Insulation Type | Nylon |
| Tab Size | 0.110 in x 0.032 in |
| Overall Length | 3/4 in |
| Seam | Overlapped |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Connection Material | Tin-Plated Copper |
| Standards | RoHS Compliant |
| Barrel Inside Dia. | 0.06 in |
| Features | Alternate Package Qty: RA10SK |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Seam Style | Overlapped |
| Insulation Material | Nylon |
| Minimum Wire Size | 22 AWG |
| RoHS Compliant | Yes |
| Barrel Style | Funnel Entry |
| Barrel Size | Long |
| Barrel Inside Diameter | 0.06 in |
| UL 94 Flammability Rating | Not Rated |
| Maximum Wire Size | 18 AWG |
| Terminal Type | Socket |
| Contact Material | Copper |
| Tab Thickness | 0.032 in |
| Maximum Voltage | 600 V |
| Tab Width | 0.11 in |
| Insulation Coverage | Partial Coverage |
| Maximum Operating Temperature | 221 deg F |
| Finish | Tin Plated |
| Type | Nylon Insulated Female Disconnect |
| AWG-range | 22-18 |
| Material insulation | PA |
| Package Quantity | 100 |
