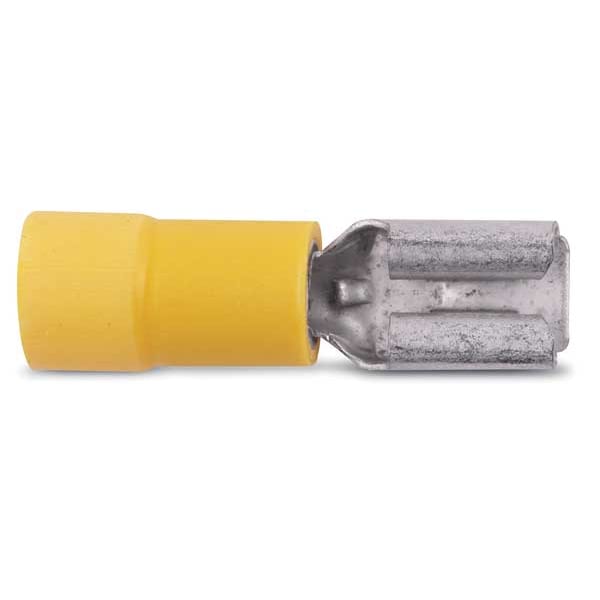

Female Disconnect, Yellow, 12-10AWG, PK50
| Item | Female Disconnect |
|---|---|
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Yellow |
| Color | Yellow |
| Insulation Type | Vinyl |
| Connection Type | Crimp |
| Wire Range | 12 to 10 AWG |
| Overall Length | 1.03 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Brazed |
| Max. Voltage | 300 V |
| Max. Temp. | 221 deg F |
| Standards | UL E66716 |
| Connection Material | Brass |
| Barrel Inside Dia. | 0.133 in |
| Features | Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC257 |
| Contact Finish | Tin |
| Seam Style | Brazed |
| Insulation Material | Vinyl |
| Maximum Operating Temperature | 221 deg F |
| Barrel Style | Funnel Entry |
| Contact Material | Copper |
| Terminal Type | Socket |
| RoHS Compliant | No |
| UL 94 Flammability Rating | Not Rated |
| Minimum Wire Size | 12 AWG |
| Tab Thickness | 0.032 in |
| Special Features | Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability |
| Barrel Inside Diameter | 0.133 in |
| Maximum Voltage | 300 V |
| Maximum Wire Size | 10 AWG |
| Termination Style | Crimp |
| Tab Width | 1/4 in |
| Barrel Size | Long |
| Insulation Coverage | Partial Coverage |
| Voltage Rating | 600 V |
| B (inches) | 0.29 |
| A (inches) | 1.03 |
| Terminal Series | RC |
| Stock Thickness | 0.04 |
| Disconnect Type | Female - 250 Series |
| Maximum Insulation (inches) | 0.25 |
| Temperature Rating | 105°C |
| Flammability Rating | UL 94 V-0 |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Recommended Tool | ERG4001 |
| Finish | Tin-Plated |
| Material insulation | Polyvinyl chloride |
| Type | Vinyl Insulated Female Disconnect |
| AWG-range | 12-10 |
| Package Quantity | 50 |
