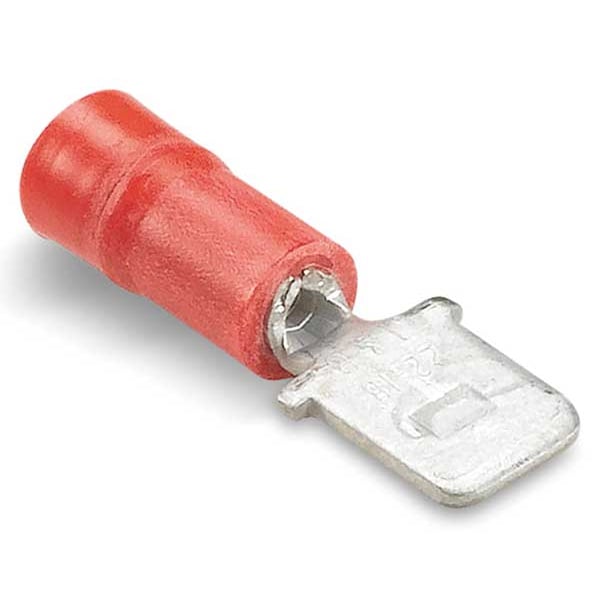

Male Disconnect, Red, 22-18AWG, PK100
| Item | Male Disconnect |
|---|---|
| Style | Male - 250 Series |
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Red |
| Color | Red |
| Insulation Type | Vinyl |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Overall Length | 0.95 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Brazed |
| Max. Voltage | 600 V |
| Max. Temp. | 221 deg F |
| Barrel Inside Dia. | 0.06 in |
| Standards | UL E66716 |
| Connection Material | Brass |
| Features | Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA2517 |
| Maximum Operating Temperature | 221 deg F |
| Disconnect Style | Tab |
| Contact Material | Copper |
| Tab Thickness | 0.032 in |
| Minimum Wire Size | 22 AWG |
| Barrel Size | Long |
| Maximum Voltage | 600 V |
| Termination Style | Crimp |
| Insulation Material | Vinyl |
| RoHS Compliant | No |
| Barrel Style | Funnel Entry |
| Seam Style | Brazed |
| UL 94 Flammability Rating | Not Rated |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.06 in |
| Insulation Coverage | Partial Coverage |
| Maximum Wire Size | 18 AWG |
| Tab Width | 1/4 in |
| Terminal Type | Tab |
| Temperature Rating | 105°C |
| Stock Thickness | 0.03 |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Flammability Rating | UL 94 V-0 |
| Recommended Tool | ERG4001 |
| Maximum Insulation (inches) | 0.17 |
| A (inches) | 0.95 |
| Voltage Rating | 600 V |
| Finish | Tin-Plated |
| Terminal Series | RA |
| AWG-range | 22-18 |
| Material insulation | Polyvinyl chloride |
| Type | Vinyl Insulated Male Disconnect |
| Package Quantity | 100 |
