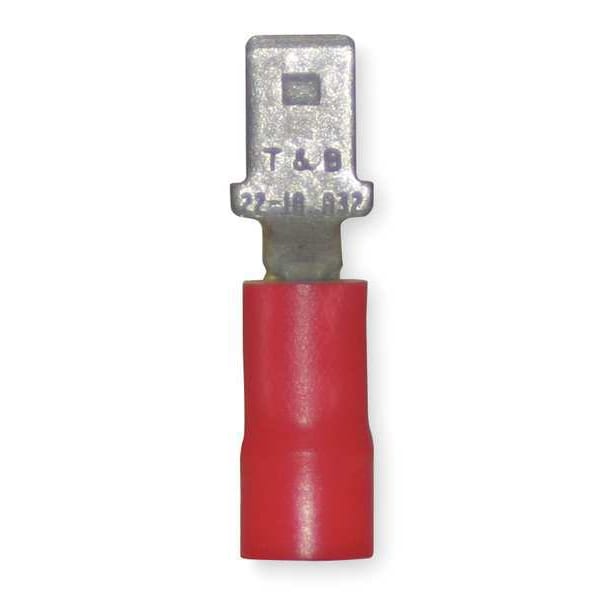

Desconexión macho, rojo, 22-18AWG, paquete de 100.
| Item | Male Disconnect |
|---|---|
| Style | Male - 187 Series |
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Red |
| Color | Red |
| Connection Type | Crimp |
| Insulation Type | Vinyl |
| Wire Range | 22 to 18 AWG |
| Overall Length | 0.87 in |
| Tab Size | 0.187 in x 0.032 in |
| Seam | Overlapped |
| Max. Temp. | 221 deg F |
| Max. Voltage | 300 V |
| Connection Material | Tin-Plated Copper |
| Standards | UL E66716 |
| Barrel Inside Dia. | 0.06 in |
| Barrel Size | Long |
| Termination Style | Crimp |
| Tab Thickness | 0.032 in |
| Insulation Material | Vinyl |
| Minimum Wire Size | 22 AWG |
| Contact Finish | Tin |
| Seam Style | Overlapped |
| Barrel Style | Funnel Entry |
| UL 94 Flammability Rating | Not Rated |
| Terminal Type | Tab |
| RoHS Compliant | Yes |
| Maximum Wire Size | 18 AWG |
| Maximum Operating Temperature | 221 deg F |
| Disconnect Style | Tab |
| Maximum Voltage | 300 V |
| Barrel Inside Diameter | 0.06 in |
| Tab Width | 0.187 in |
| Contact Material | Copper |
| Insulation Coverage | Partial Coverage |
| Voltage Rating | 600 V |
| Finish | Tin-Plated |
| A (inches) | 0.87 |
| Stock Thickness | 0.03 |
| Temperature Rating | 105°C |
| Recommended Tool | ERG4001 |
| Maximum Insulation (inches) | 0.15 |
| Flammability Rating | UL 94 V-0 |
| Terminal Series | RAD |
| Type | Vinyl Insulated Male Disconnect |
| Material insulation | Polyvinyl chloride |
| AWG-range | 22-18 |
| Package Quantity | 100 |
