Male Disconnect, Red, 22 to 18 AWG, PK50
| Item | Male Disconnect |
|---|---|
| Style | Male - 250 Series |
| Insulation | Full |
| Material | Brass |
| Insulation Color | Red |
| Color | Red |
| Insulation Type | Nylon |
| Wire Range | 22 to 18 AWG |
| Connection Type | Crimp |
| Tab Size | 0.032 in x 0.250 in |
| Overall Length | 0.95 in |
| Seam | Overlapped |
| Max. Temp. | 221 deg F |
| Max. Voltage | 300 V |
| Connection Material | Tin-Plated Copper |
| Standards | UL E66716 |
| Barrel Inside Dia. | 0.06 in |
| Features | Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RA25177 |
| Tab Thickness | 0.032 in |
| Maximum Operating Temperature | 221 deg F |
| Disconnect Style | Tab |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Barrel Style | Funnel Entry |
| Maximum Voltage | 300 V |
| Terminal Type | Tab |
| UL 94 Flammability Rating | Not Rated |
| Termination Style | Crimp |
| Tab Width | 1/4 in |
| Seam Style | Overlapped |
| Insulation Coverage | Full Coverage |
| Minimum Wire Size | 22 AWG |
| Barrel Size | Long |
| RoHS Compliant | No |
| Maximum Wire Size | 18 AWG |
| Barrel Inside Diameter | 0.06 in |
| Stock Thickness | 0.03 |
| Recommended Tool | ERG4001 |
| Finish | Tin-Plated |

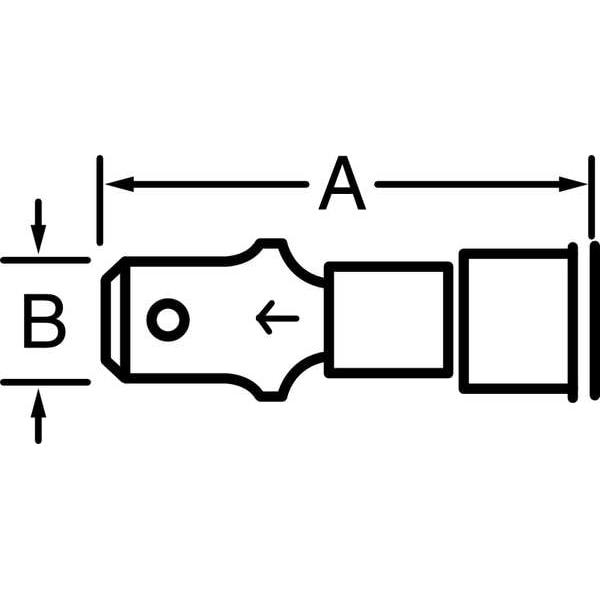

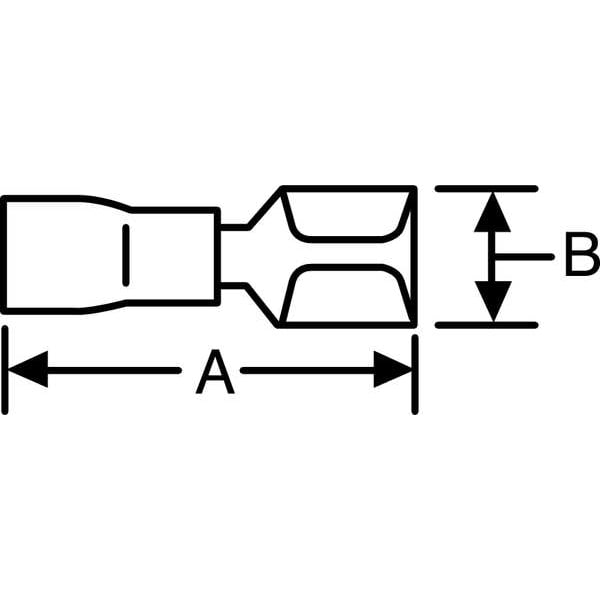

| A (inches) | 1.13 |
| Flammability Rating | UL 94 V-0 |
| Maximum Insulation (inches) | 0.17 |
| Application Tools | WT145C, WT2000, WT112M, ERG4001, ERG4003 |
| Temperature Rating | 105°C |
| Voltage Rating | 300 V |
| B (inches) | 0.45 |
| Terminal Series | RA |
| AWG-range | 22-18 |
| Material insulation | PA |
| Type | Nylon Insulated Male Disconnect |
| Package Quantity | 50 |
