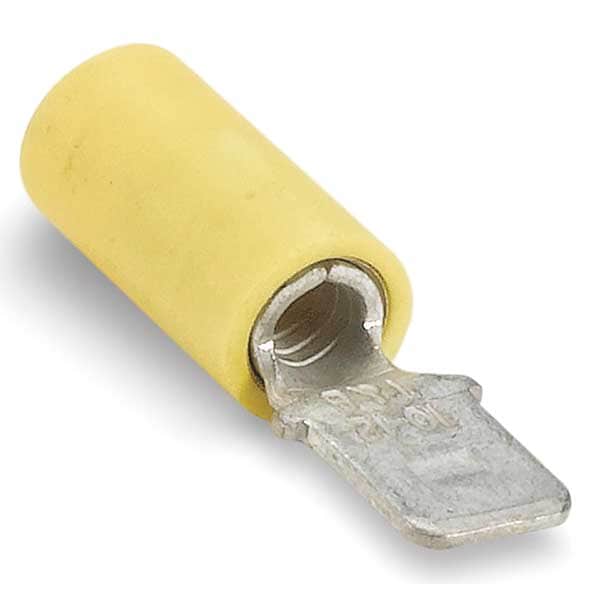

Desconexión macho, amarilla, calibre 16-14, paquete de 50
| Item | Male Disconnect |
|---|---|
| Insulation | Partial |
| Material | Brass |
| Insulation Color | Yellow |
| Color | Yellow |
| Wire Range | 12 to 10 AWG |
| Connection Type | Crimp |
| Insulation Type | Vinyl |
| Overall Length | 1.08 in |
| Tab Size | 0.032 in x 0.250 in |
| Seam | Brazed |
| Max. Temp. | 221 deg F |
| Max. Voltage | 600 V |
| Barrel Inside Dia. | 0.133 in |
| Standards | UL E66716 |
| Connection Material | Brass |
| Features | Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RC2517 |
| UL 94 Flammability Rating | Not Rated |
| Termination Style | Crimp |
| Tab Width | 1/4 in |
| Insulation Material | Vinyl |
| Contact Finish | Tin |
| Maximum Wire Size | 10 AWG |
| Contact Material | Copper |
| RoHS Compliant | No |
| Maximum Operating Temperature | 221 deg F |
| Barrel Size | Long |
| Seam Style | Brazed |
| Barrel Style | Funnel Entry |
| Disconnect Style | Tab |
| Insulation Coverage | Partial Coverage |
| Tab Thickness | 0.032 in |
| Barrel Inside Diameter | 0.133 in |
| Minimum Wire Size | 12 AWG |
| Maximum Voltage | 600 V |
| Terminal Type | Tab |
| Finish | Tin Plated |
| Type | Vinyl Insulated Male Disconnect |
| Standard | UL E66716 |
| Material insulation | Polyvinyl chloride |
| AWG-range | 12-10 |
| Package Quantity | 50 |
