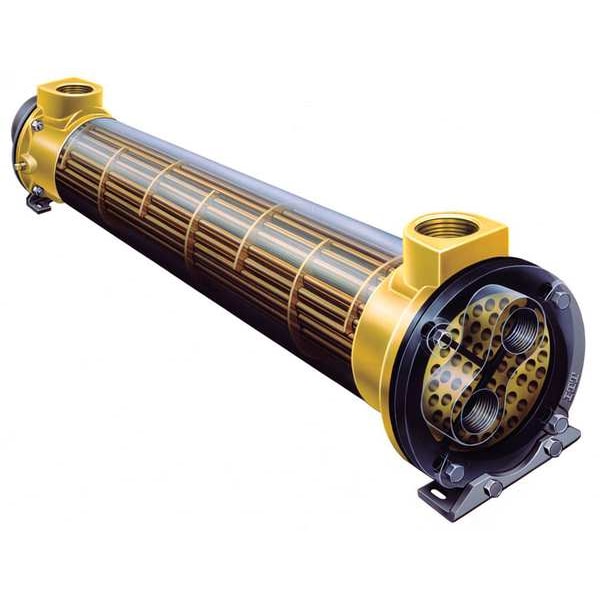

Heat Exchanger, 3,450,000 BTU, SS
| Item | Heat Exchanger |
|---|---|
| Type | Shell and Tube |
| Max. BtuH (Water to Water Application) | 3,450,000 BtuH |
| Max. BtuH (Oil to Water Application) | 631,000 BtuH |
| Pressure | Shell 225 psig, Tube 150 psig |
| Temp. (F) | 450 |
| Construction Material | 316 Stainless Steel |
| Connection | Shell 3 in NPT, Tube 2 in NPT |
| Capacity (GPM) | 105, 140 |
| Height (In.) | 11 |
| Length (In.) | 66-5/8 |
| Width (In.) | 10-1/2 |
| Weight (Lbs.) | 280 |
| Heat Dissipation Capacity for Oil | 631,000 BtuH |
| Shell Maximum Operating Temperature | 450 deg F |
| Overall Width | 10-1/2 in |
| Heat Exchanger Type | Straight Tube |
| Shell Pipe Connection Type | NPT |
| Shell Material | Stainless Steel |
| Shell Maximum Pressure Rating | 225 psig |
| Shell Outside Diameter | 8-1/8 in |
| Overall Height | 11 in |
| Tube Length | 66-5/8 in |
| Application | Oil to Water Applications |
| Tube Pipe Connection Size | 2 in |
| Number of Passes | 4 |
| Shell Pipe Connection Size | 3 in |
| Tube Material | Stainless Steel |
| Tube Maximum Pressure Rating | 150 psig |
| Tube Flow Capacity | 105 gpm |
| Heat Dissipation Capacity for Water | 3,450,000 BtuH |
| Tube Maximum Operating Temperature | 450 deg F |
| Shell Flow Capacity | 140 gpm |
| Total Surface Area | 103 sq ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
