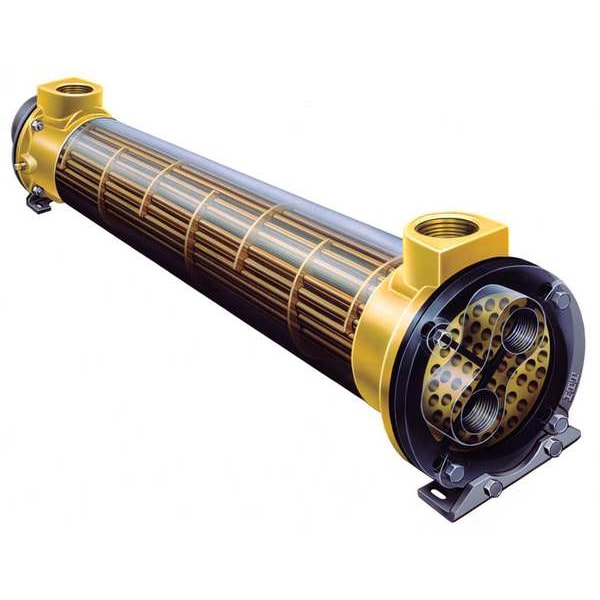

Heat Exchanger, Shell And Tube, 240K BTU
| Item | Heat Exchanger |
|---|---|
| Type | Shell and Tube |
| Max. BtuH (Water to Water Application) | 240,000 BtuH |
| Max. BtuH (Oil to Water Application) | 12,700 BtuH |
| Pressure | Shell 225 psig, Tube 150 psig |
| Temp. (F) | 450 |
| Construction Material | 316 Stainless Steel |
| Connection | Shell 1 in NPT, Tube 3/4 in NPT |
| Capacity (GPM) | 12, 24 |
| Weight (Lbs.) | 12 |
| Height (In.) | 4.8 |
| Width (In.) | 4-1/2 |
| Length (In.) | 10-3/8 |
| Surface Area Per Plate (Sq.-Ft.) | 2.4 sq ft |
| Tube Pipe Connection Size | 3/4 in |
| Heat Dissipation Capacity for Water | 240,000 BtuH |
| Total Surface Area | 2.4 sq ft |
| Tube Flow Capacity | 12 gpm |
| Shell Maximum Pressure Rating | 225 psig |
| Shell Pipe Connection Type | NPT |
| Tube Maximum Pressure Rating | 150 psig |
| Number of Passes | 4 |
| Shell Pipe Connection Size | 1 in |
| Shell Material | Stainless Steel |
| Heat Dissipation Capacity for Oil | 12,700 BtuH |
| Heat Exchanger Type | Straight Tube |
| Shell Flow Capacity | 24 gpm |
| Tube Material | Stainless Steel |
| Application | Water to Water Applications |
| Tube Length | 10-3/8 in |
| Shell Maximum Operating Temperature | 450 deg F |
| Tube Maximum Operating Temperature | 450 deg F |
| Overall Width | 4-1/2 in |
| Overall Height | 4-13/16 in |
| Shell Outside Diameter | 3-1/8 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
