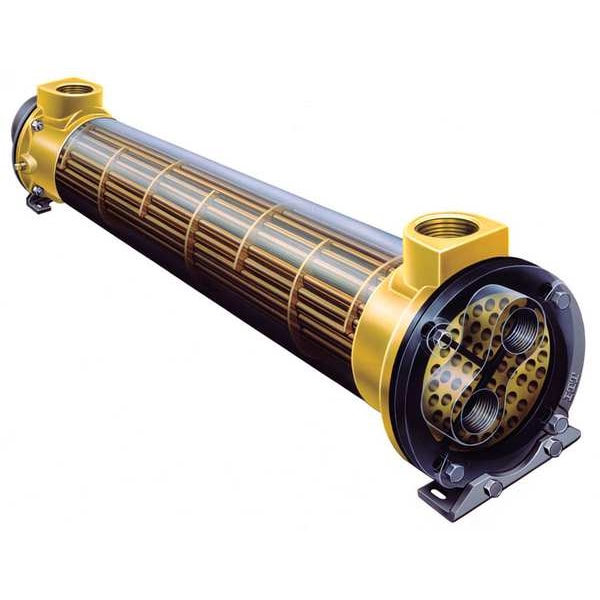

Heat Exchanger, Shell And Tube, 525K BTU
| Item | Heat Exchanger |
|---|---|
| Type | Shell and Tube |
| Max. BtuH (Water to Water Application) | 525,000 BtuH |
| Max. BtuH (Oil to Water Application) | 42,700 BtuH |
| Pressure | Shell 300 psig, Tube 150 psig |
| Temp. (F) | 300 |
| Construction Material | Brass |
| Connection | Shell 1 1/2 in NPT, Tube 1 in NPT |
| Capacity (GPM) | 30, 60 |
| Weight (Lbs.) | 45 |
| Length (In.) | 18.812 |
| Width (In.) | 6-3/4 |
| Height (In.) | 7 |
| Surface Area Per Plate (Sq.-Ft.) | 9.1 sq ft |
| Tube Pipe Connection Size | 1 in |
| Tube Maximum Operating Temperature | 300 deg F |
| Application | Water to Water Applications |
| Shell Pipe Connection Size | 1-1/2 in |
| Shell Outside Diameter | 5-1/8 in |
| Shell Material | Brass |
| Shell Pipe Connection Type | NPT |
| Number of Passes | 4 |
| Shell Maximum Operating Temperature | 300 deg F |
| Tube Maximum Pressure Rating | 150 psig |
| Heat Dissipation Capacity for Water | 525,000 BtuH |
| Heat Dissipation Capacity for Oil | 42,700 BtuH |
| Tube Material | Copper |
| Tube Length | 18-3/4 in |
| Shell Maximum Pressure Rating | 300 psig |
| Overall Height | 7 in |
| Heat Exchanger Type | Straight Tube |
| Overall Width | 6-3/4 in |
| Shell Flow Capacity | 60 gpm |
| Total Surface Area | 9.1 sq ft |
| Tube Flow Capacity | 30 gpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
