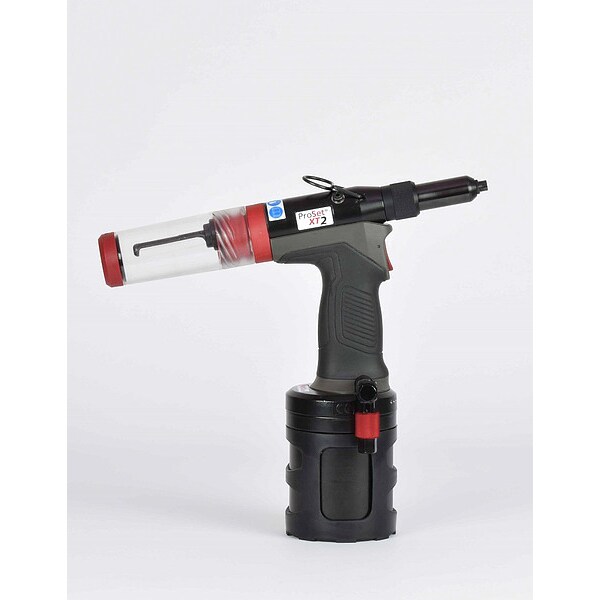

Riveter, Industrial Duty, 3045 lb. Force
| Item | Rivet Tool |
|---|---|
| Overall Length | 10 in |
| Tool Weight | 2.8 lb |
| Stroke Length | 1 in |
| Construction | Steel |
| Pulling Force | 3,045 lbf |
| Mandrel Collection System Included | Yes |
| Height | 10-25/32 in |
| Length | 10-51/64 in |
| Max. Pressure | 101.5 psi |
| Item - Air Riveters | Air Riveter |
| Duty | Industrial |
| Blind Rivet Dia. | 1/8 in, 5/32 in, 3/16 in |
| Air Inlet | 1/8 in NPT |
| Duty Cycle - Air Tools | Industrial Duty |
| CFM per Stroke | 1.34 |
| Pulling Force - Air Riveters | 3,045 lb |
| Min. Hose Size | 1/4 in |
| Air Inlet Size - Air Tools | 1/4 in NPT |
| Rivet Nut Dia. | 1/2 in |
| Includes Mandrel Collection | Yes |
| Air Consumption | 1.3 cfm |
| Features | Set Uniform Rivets In Any Position |
| Max. Air Pressure | 101.5 psi |
| Power Source | Air Powered |
| Min. Air Pressure | 72 psi |
| Air Pressure | 102 psi |
| Overall Height | 9-5/8 in |
| Blind Rivet Dia. - Steel | 1/8 in, 5/32 in, 3/16 in |
| Overall Width | 4 in |
| Nose Length | 3 in |
| Rivet Type | Blind Rivet |
| Exhaust Location | Bottom |
| Blind Rivet Dia. - Stainless Steel | 1/8 in, 5/32 in, 3/16 in |
| Housing Material | Steel |
| Duty Rating | Industrial Duty |
| Nose Dia. | 1 in |
| Blind Rivet Dia. - Aluminum | 1/8 in, 5/32 in, 3/16 in |
| Package Quantity | 1 |
