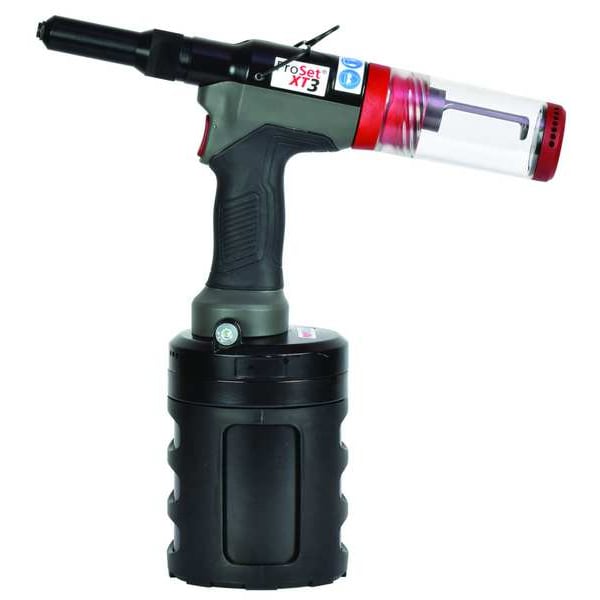

Riveter, Industrial Duty, 4206 lb. Force
| Item | Rivet Tool |
|---|---|
| Overall Length | 13-3/8 in |
| Tool Weight | 4.7 lb |
| Stroke Length | 1 in |
| Construction | Steel |
| Pulling Force | 4,206 lbf |
| Length | 13-33/64 in |
| Rivet Nut Dia. | 1/2 in |
| Height | 13-1/2 in |
| Blind Rivet Dia. | 3/16 in, 1/4 in |
| Item - Air Riveters | Air Riveter |
| Air Inlet Size - Air Tools | 1/4 in NPT |
| Mandrel Collection System Included | Yes |
| Min. Hose Size | 1/4 in |
| Duty Cycle - Air Tools | Industrial Duty |
| Max. Pressure | 101.5 psi |
| Duty | Industrial |
| CFM per Stroke | 5.77 |
| Pulling Force - Air Riveters | 4,206 lb |
| Air Inlet | 1/4 in NPT |
| Air Consumption | 5.8 cfm |
| Max. Air Pressure | 90 psi |
| Rivet Type | Blind Rivet |
| Nose Dia. | 1 in |
| Min. Air Pressure | 72 psi |
| Overall Width | 4 in |
| Nose Length | 3 in |
| Power Source | Air Powered |
| Blind Rivet Dia. - Steel | 5/32 in, 3/16 in, 1/4 in |
| Exhaust Location | Bottom |
| Overall Height | 13-1/2 in |
| Air Pressure | 102 psi |
| Blind Rivet Dia. - Stainless Steel | 5/32 in, 3/16 in, 1/4 in |
| Duty Rating | Industrial Duty |
| Blind Rivet Dia. - Aluminum | 5/32 in, 3/16 in, 1/4 in |
| Housing Material | Steel |
| Includes Mandrel Collection | Yes |
| Features | Set Uniform Rivets In Any Position |
| Package Quantity | 1 |
