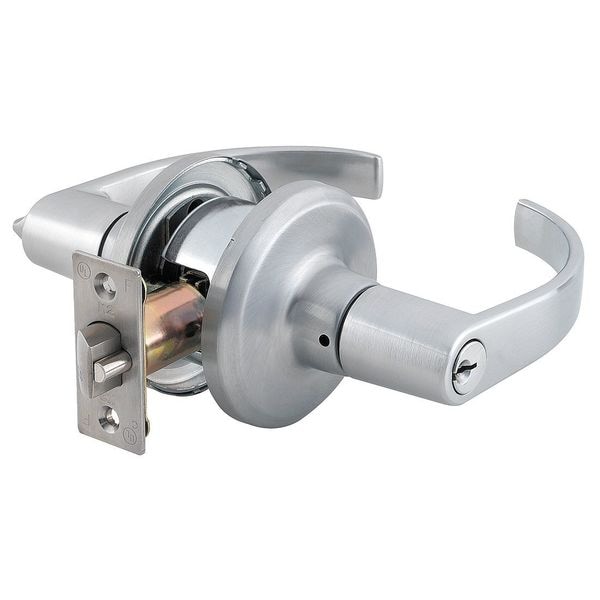

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | QCL Summit |
| Required Door Thickness | 1-3/8 in to 2 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Less Cylinder |
| Key Type | Not Keyed |
| ADA Compliant | Yes |
| Ligature Resistant | No |
| Location Type | Multi-Family, Hotel, Retail, Apartment Complex, Government Facility, Office Building, Religious |
| Finish | Satin Chrome |
| Mortise/Cylindrical | Cylindrical |
| Lockset Performance Strength | Standard Duty |
| Strike Type | ANSI |
| Key Material | Not Applicable |
| Series | QCL200 |
| Number of Keys | 0 |
| Standards | ANSI A117.1, ANSI/BHMA A156.2, California State Reference Code (Formerly Title 19 - Fire Marshal) Hurricane Compliant - Miami DADA N.O.A, UL and cUL Listed |
| Number of Pins | 6 |
| Lockset Fire Rating | 3 hr |
| Includes | Heavy Duty Torsion Springs |
| Backset | 2-3/4 in |
| Handle Material | Pressure Cast Zinc |
| Item | Door Lockset |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Cylinder Core Type | Small Format Interchangeable Core Cylinder |
| Pins | 6 |
| Voltage | Not Applicable |
| Grade | 2 |
| Function | Entry |
| Material | Pressure Cast Zinc |
| Fire Rated | Yes |
| Application | Commercial, Hospitals, Multiple Family Residential |
| Strike | 1 1/4" and 4 7/8" |
| Keying | Keyed Different |
| Cylinder | SFIC |
| For Door Thickness | 1 3/8" - 2" |
| Visual Indicator Message | No Message |
| Lockset Function ANSI Code | F109 |
| Strike Plate Height | 4-7/8 in |
| Hand Orientation | Non-Handed |
| Lockset Style | QCL Summit |
| Fire Rating | 3 hr |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Door Thickness - Minimum | 1-3/8 in |
| Knob/Handle Material | Cast Zinc |
| Strike Plate Width | 1-1/4 in |
| ANSI Grade | 2 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Performance Grade | 2 |
| Visual Indicator Location | Not Applicable |
| Includes Core | Core Not Included |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Type | Mechanical |
| Door Thickness - Maximum | 2 in |
| UL Fire Rating | UL10C, UL10B |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
