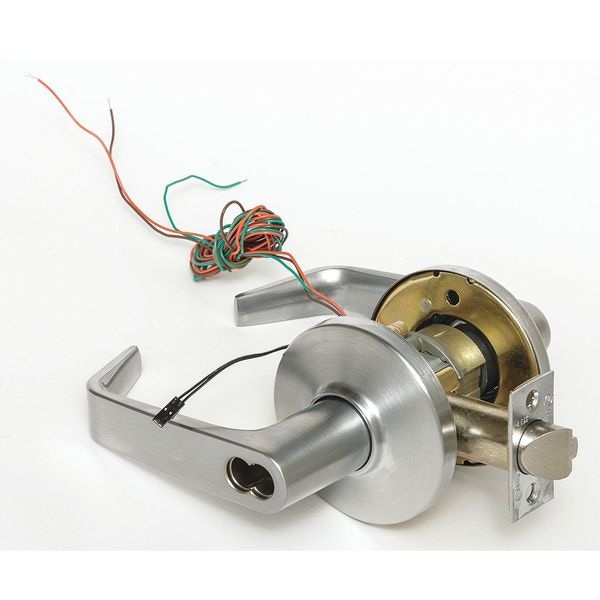

Lever Lockset, Mechanical, Storeroom, Grd.1
| Item | Door Lockset |
|---|---|
| Finish | Satin Chrome |
| For Use With | Hollow Metal and Wood Doors |
| Includes | Mounting Hardware |
| Style | 9K Angled |
| Series | 9K |
| Application | Commercial |
| Features | Corrosion Treated Internal Steel Mechanisms |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Lockset Function | Storeroom |
| Location Type | Commercial, Institutional |
| Lockset Fire Rating | 3 hr |
| Lockset Finish | Satin Chrome |
| Electrical/Mechanical | Electrical |
| Lockset Performance Strength | Extra Heavy Duty |
| Ligature Resistant | No |
| Mortise / Cylindrical | Cylindrical |
| Voltage | 24V |
| Handle Material | Zinc |
| Lockset Grade | 1 |
| Mortise/Cylindrical | Cylindrical |
| Standards | UL Listed |
| Key Type | Not Keyed |
| Lockset Handle Type | Lever |
| ADA Compliant | Yes |
| Number of Pins | 7 |
| Number of Keys | 0 |
| Keyway Type | None |
| Backset | 2 3/4 in |
| Cylinder Core Type | Format Interchangeable Core Cylinder |
| Strike Type | ANSI |
| Required Door Thickness | 1-3/4 in to 2-1/4 in |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Keying | Unkeyed |
| Key Material | Not Applicable |
| Visual Indicator Message | No Message |
| Hand Orientation | Non-Handed |
| Performance Grade | 1 |
| Lockset Style | Angled |
| Failure Mode | Fail Safe |
| Lockset Type | Electrical |
| Door Thickness - Maximum | 2-1/4 in |
| Includes Core | Core Not Included |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 4-7/8 in |
| Latch Bolt/Dead Bolt | Dead Latch |
| Fire Rating | 3 hr |
| Ligature-Resistant | Not Ligature-Resistant |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/4 in |
| Knob/Handle Material | Zinc Alloy |
| Visual Indicator Location | Not Applicable |
| ANSI Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
