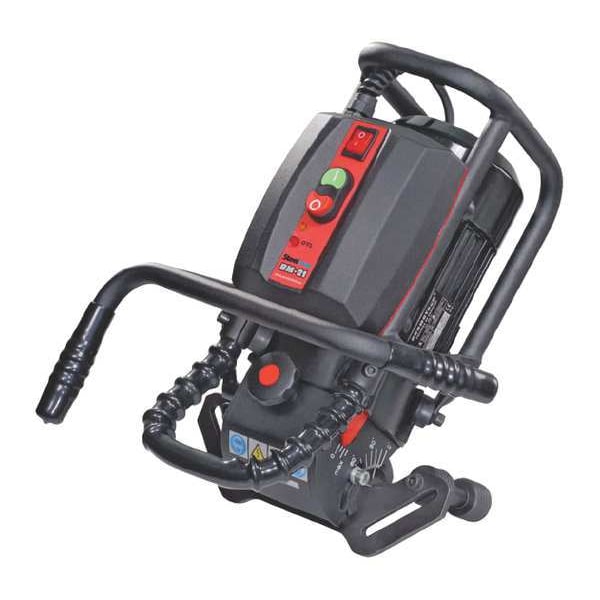

Portable Beveling Machine, 115V 60Hz
| Item | Beveling Machine |
|---|---|
| Pipe Capacity | 6 to 24 in |
| Power Requirements | 115V 60Hz |
| Voltage | 115 V AC |
| Speed Range | 2,820 RPM |
| Includes | 12 mm Flat Wrench, 4 mm Hex Wrench, 6 mm Hex Wrench, 8 mm Hex Wrench, Metal Carrying Case, Mfr. No. BM21 Beveling Machine with a Set of Cutting Inserts, Operator Manual, T15 Torx Screwdriver |
| Series | SM-BM21 |
| Width | 16 in |
| Length | 11 in |
| Height | 17 in |
| Tool Length | 11 in |
| Bevel Angle | 0 to 60 deg |
| Number of Inserts | 10 |
| Phase | Single-Phase |
| Tool Weight | 43 lb |
| Standards | CE Certified |
| Horsepower | 1.5 |
| Minimum Pipe Diameter | 6 in |
| Maximum Workpiece Thickness | 13/16 in |
| Kit Contents | Bare Tool |
| Feed Type | Hand Fed |
| Power Source | Corded |
| Compatible Workpiece Shape | Pipe, Plate |
| Maximum Pipe Diameter | 24 in |
| Maximum Speed | 2,820 rpm |
| Current | 15 A |
| Maximum Bevel Width | 13/16 in |
| Beveler Type | Portable |
| Minimum Workpiece Thickness | 1/8 in |
| Number of Cutting Sides | Single-Sided |
| Package Quantity | 1 |
