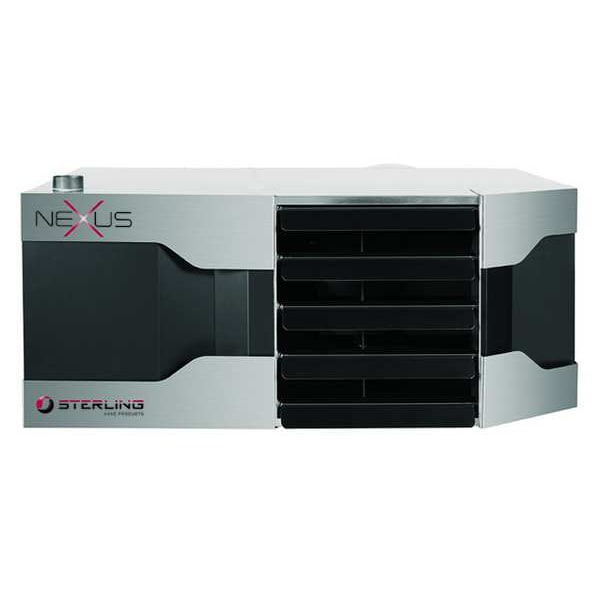

Gas Unit Heater, NG, 50,000, 790 cfm, Direct, Propeller, 1/2 in
| BtuH Input | 50,000 |
|---|---|
| Gas Type | NG |
| Combustion Type | Field Convertible |
| BtuH Output | 48,600 |
| Gas Connection | 1/2 in |
| Fan Type | Propeller |
| Air Flow | 790 cfm |
| Height | 13-5/8 in |
| Item | Gas Wall and Ceiling Unit Heater |
| Full Load Amps | 10.8 A |
| Indoor Air Discharge Height | 10-1/8 in |
| Standards | ETL, ETLc Certified |
| Air Temp. Rise | 57 deg F |
| Drive Type | Direct |
| Heater Voltage | 115 V AC |
| Depth | 32-5/8 in |
| O.C. Mounting | 28 in |
| Ignition System | Direct Spark |
| Manufacturers Warranty Length | 10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr |
| Vent | Power |
| Hz | 60 |
| Width | 42-13/16 in |
| Primary Heat Exchanger Material | Aluminum, Brass, Tri-Metal, Stainless Steel |
| Burner Air Inlet Size | 2 in |
| Flue Dia. | 2 in |
| Indoor Air Discharge Width | 15 in |
| Green Environmental Attribute | Commercial Gas Heater Has Thermal Efficiency Rating = 0.90 |
| Frequency | 60 Hz |
| Overall Dimensions - H x W x D | 13-5/8 in x 42-13/16 in x 32-5/8 in |
| Maximum Amperage | 10.8 A |
| Phase | 1 |
| Heating Capacity Input | 50,000 BtuH |
| Product Type | Unit Heater |
| Fuel Type, Combustion Type | Field Convertible, Natural Gas |
| Heat Exchanger Gauge | 20 ga |
| Air Flow Direction | Horizontal |
| Gas Connection Type | NPT, Male |
| Mounting Hole Diameter | 3/4 in |
| Overall Width | 42-13/16 in |
| Overall Height | 13-5/8 in |
| Heating Capacity Output | 48,600 BtuH |
| Thermostat Included | No |
| Vent Type | Power |
| Fuel Type | Natural Gas |
| Mounting Location | Ceiling |
| Thermal Efficiency Rating | 97% |
| Flue Diameter | 2 in |
| Gas Connection Size | 1/2 in |
| Includes | Adjustable Louvers |
| Profile Type | Low |
| Features | Furnace Type-Right Side Access, Direct Spark Gas Control-Modulating W/Outside Air Reset (Master) |
| Motor Speed | 1,500 rpm |
| Off Center Mounting | 28 in |
| Heat Output | 48,600 BtuH |
| Heating Method | Fan Forced |
| Air Temperature Rise | 57 deg F |
| Fan Diameter | 10 in |
| Motor Type | SP |
| Ignition Type | Direct Spark |
| Overall Depth | 32-5/8 in |
| Heat Exchanger Material | Stainless Steel |
| Mounting Height | 8 ft to 20 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
