Smoke and Acoustic Pthwy Device, 25 in. W
| Item | Smoke and Acoustical Pathway Device |
|---|---|
| Color | Silver |
| Material | Steel |
| Fire Rating | Not Rated |
| Standards | L Ratings Tested |
| Usage Location | Non-Rated Walls and Floors |
| Overall Length | 4 in |
| Shape | Square |

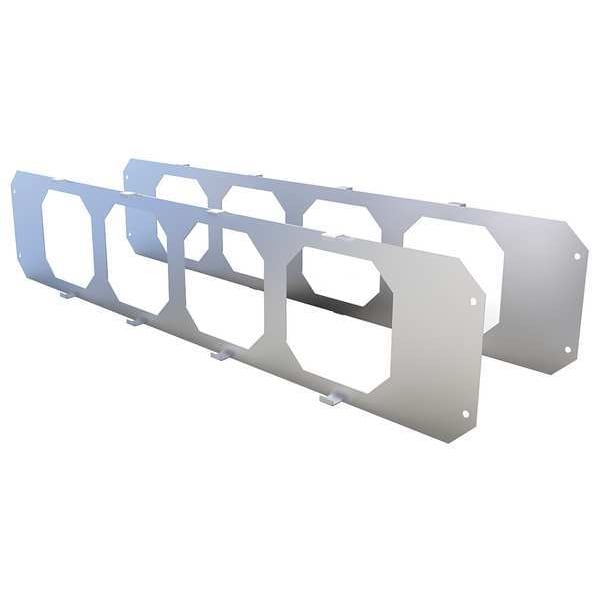

| Includes | (4) Gang Plate Pack |
| Diameter | Not Applicable |
| For Pipe Size | Not Applicable |
| For Use On | Cable, Cable Trays |
| Overall Width | 25 in |
| Overall Height | 0.8 in |
| Maximum Service Temperature | 130 deg F |
| Cable Loading Area | 6.7 sq in |
| Body Material | Steel |
| Includes Mounting Hardware | Yes |
| Minimum Service Temperature | -30 deg F |
| Firestop Type | Wall Mounting Brackets |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
