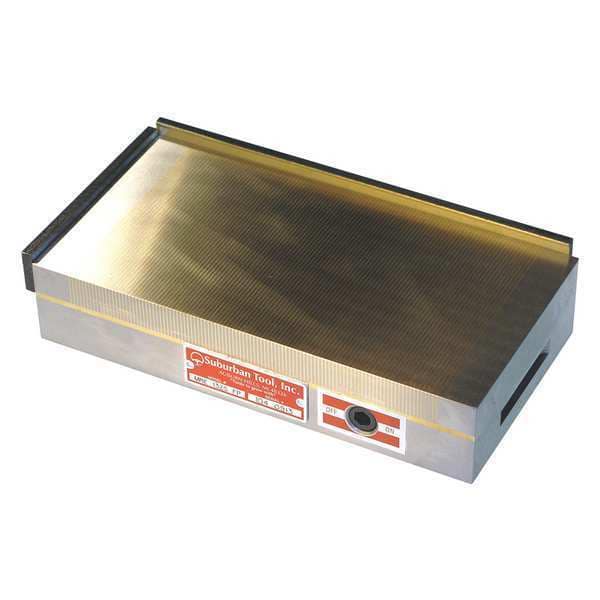

Mag. Chuck, 1-3/4inH, 1/16in, 4-3/32in, Fine
| Item | Magnetic Chuck |
|---|---|
| Pole Type | Fine |
| Magnet Type | Permanent Rare Earth |
| Base Length | 7-1/16 in |
| Pole Alignment | Transverse |
| Avg. Max. Holding Power | 116 psi |
| Overall Height | 45 mm |
| Pole Size | 1.5 mm |
| Shape | Rectangular |
| Surface Width | 104 mm |
| Surface Length | 150 mm |
| Base Width | 4-1/16 in |
| Compound Style | No |
| Separator Size | 0.5 mm |
| Features | Chucks are Lubricated and Sealed against Dust and Dirt, Flat, Square and Parallel within 0.005 mm/100 mm, Removable Handle, Side and Back Rails, Suitable for Grinding and Light Milling, Works Best for Holding Larger and Thicker Workpieces |
| Parallelism | 0.005 mm |
| Average Holding Power - Maximum | 116 psi |
| Squareness | 0.005 mm |
| Package Quantity | 1 |
