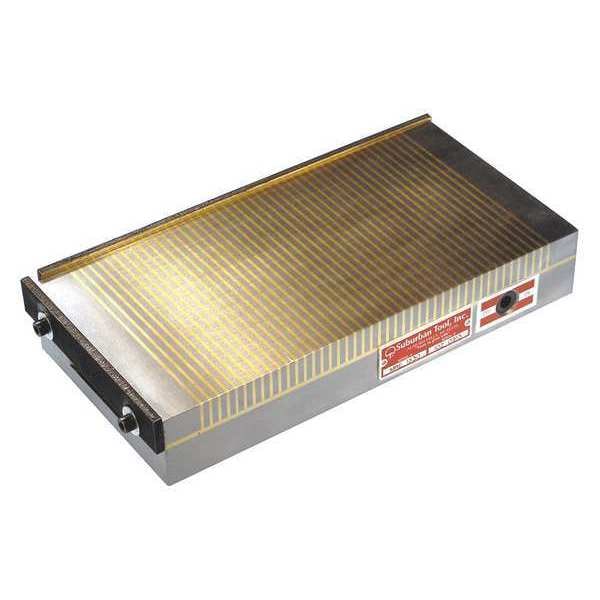

Mag. Chuck, 1-3/4inH, 5-29/32in, Standard
| Item | Magnetic Chuck |
|---|---|
| Pole Size | 4 mm |
| Surface Length | 400 mm |
| Overall Height | 45 mm |
| Avg. Max. Holding Power | 116 psi |
| Base Length | 17-3/4 in |
| Shape | Rectangular |
| Compound Style | No |
| Pole Alignment | Transverse |
| Surface Width | 150 mm |
| Separator Size | 2 mm |
| Magnet Type | Permanent Rare Earth |
| Pole Type | Standard |
| Base Width | 15-3/4 in |
| Features | Chucks are Lubricated and Sealed against Dust and Dirt, Flat, Square and Parallel within 0.005 mm/100 mm, Removable Handle, Side and Back Rails, Suitable for Grinding and Light Milling, Works Best for Holding Larger and Thicker Workpieces |
| Parallelism | 0.005 mm |
| Average Holding Power - Maximum | 116 psi |
| Squareness | 0.005 mm |
| Package Quantity | 1 |
