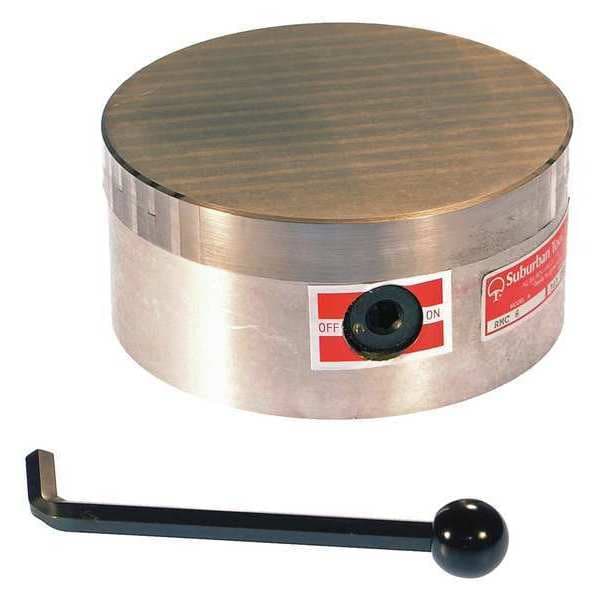

Mag. Chuck, 2-15/16inH, 1/8in, Fine, 6-1/4in
| Item | Magnetic Chuck |
|---|---|
| For Use With | Inside Diameter Grinders |
| Compound Style | No |
| Pole Size | 1/8 in |
| Separator Size | 1/8 in |
| Pole Type | Fine |
| Magnet Type | Permanent Ceramic |
| Pole Alignment | Transverse |
| Shape | Round |
| Avg. Max. Holding Power | 30 to 35 psi |
| Outside Dia. | 6-1/4 in |
| Overall Height | 2-15/16 in |
| Features | Back Surface of Aluminum Chuck Body has Tapped Holes (D) and a Turned Counterbore (B) for Convenient Mounting to your Machine, Removable On-Off Handle Included with each Chuck, The Top Plates can be Drilled and Tapped in Places to Three Quarters of their Thickness, Thick Top Plates are Laminated from Steel and Stainless Steel, Then Furnace Brazed into One Solid Piece |
| Overall Diameter | 6-1/4 in |
| Compatible Product Type | Inside Diameter Grinders |
| Average Holding Power - Maximum | 35 psi |
| Package Quantity | 1 |
