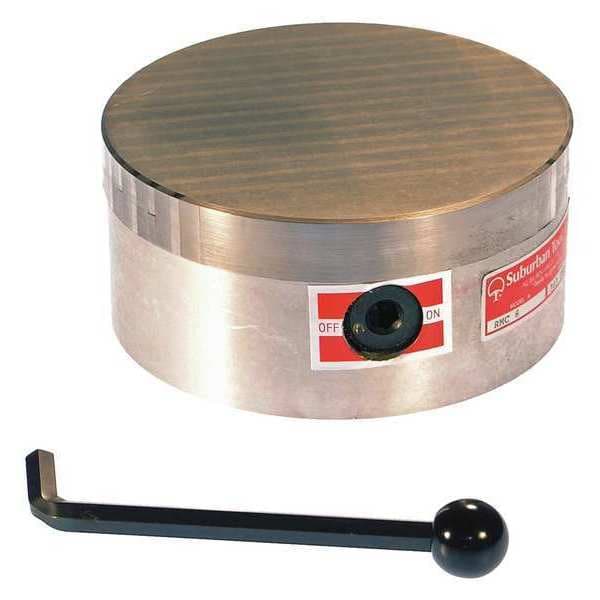

Mag. Chuck, 2-15/16inH, 1/8in, Fine, 7-3/4in
| Item | Magnetic Chuck |
|---|---|
| For Use With | Inside Diameter Grinders |
| Pole Type | Fine |
| Pole Alignment | Transverse |
| Outside Dia. | 7-3/4 in |
| Compound Style | No |
| Pole Size | 1/8 in |
| Overall Height | 2-15/16 in |
| Shape | Round |
| Avg. Max. Holding Power | 30 to 35 psi |
| Magnet Type | Permanent Ceramic |
| Separator Size | 1/8 in |
| Features | Back Surface of Aluminum Chuck Body has Tapped Holes (D) and a Turned Counterbore (B) for Convenient Mounting to your Machine, Removable On-Off Handle Included with each Chuck, The Top Plates can be Drilled and Tapped in Places to Three Quarters of their Thickness, Thick Top Plates are Laminated from Steel and Stainless Steel, Then Furnace Brazed into One Solid Piece |
| Average Holding Power - Maximum | 35 psi |
| Overall Diameter | 7-3/4 in |
| Compatible Product Type | Inside Diameter Grinders |
| Package Quantity | 1 |
