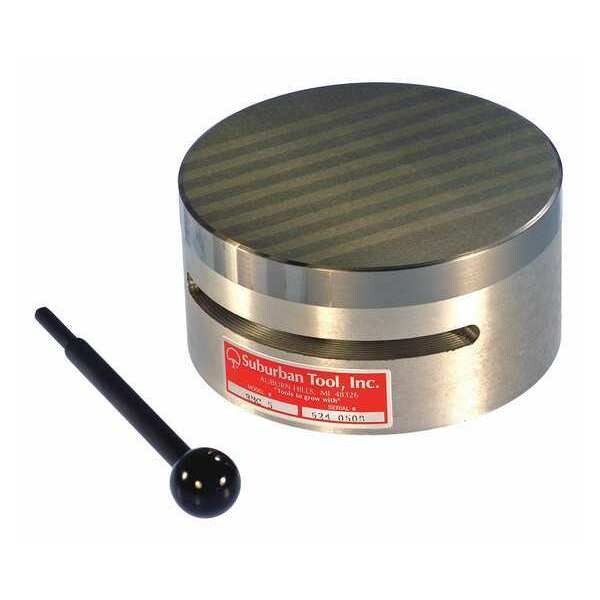

Mag. Chuck, 3inH, 1/4in, Standard, 5-1/2in
| Item | Magnetic Chuck |
|---|---|
| For Use With | Inside Diameter Grinders |
| Separator Size | 1/8 in |
| Avg. Max. Holding Power | 30 to 35 psi |
| Shape | Round |
| Magnet Type | Permanent Ceramic |
| Outside Dia. | 5-1/2 in |
| Overall Height | 3 in |
| Pole Type | Standard |
| Compound Style | No |
| Pole Alignment | Transverse |
| Pole Size | 1/4 in |
| Features | Back Surface of Aluminum Chuck Body has Tapped Holes (D) and a Turned Counterbore (B) for Convenient Mounting to your Machine, Removable On-Off Handle Included with each Chuck, The Top Plates can be Drilled and Tapped in Places to Three Quarters of their Thickness, Thick Top Plates are Laminated from Steel and Stainless Steel, Then Furnace Brazed into One Solid Piece |
| Compatible Product Type | Inside Diameter Grinders |
| Average Holding Power - Maximum | 35 psi |
| Overall Diameter | 5-1/2 in |
| Package Quantity | 1 |
