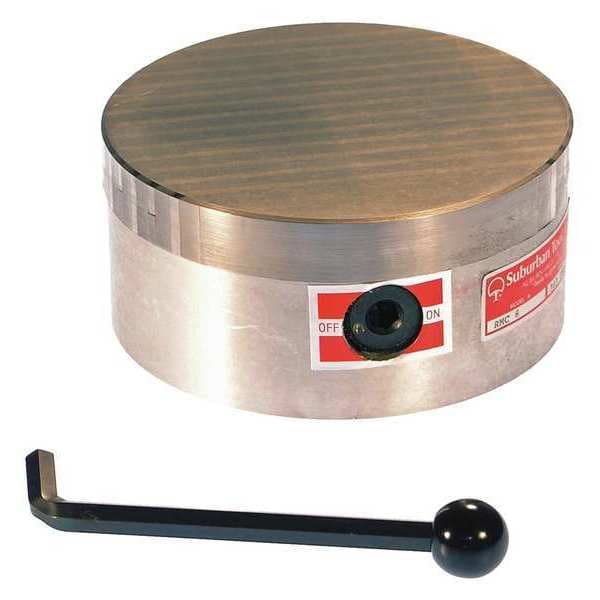

Mag. Chuck, 3inH, 1/4in, Standard, 9-1/4in
| Item | Magnetic Chuck |
|---|---|
| For Use With | Inside Diameter Grinders |
| Avg. Max. Holding Power | 30 to 35 psi |
| Shape | Round |
| Outside Dia. | 9-1/4 in |
| Magnet Type | Permanent Ceramic |
| Overall Height | 3 in |
| Pole Type | Standard |
| Pole Alignment | Transverse |
| Separator Size | 1/8 in |
| Pole Size | 1/4 in |
| Features | Back Surface of Aluminum Chuck Body has Tapped Holes (D) and a Turned Counterbore (B) for Convenient Mounting to your Machine, Removable On-Off Handle Included with each Chuck, The Top Plates can be Drilled and Tapped in Places to Three Quarters of their Thickness, Thick Top Plates are Laminated from Steel and Stainless Steel, Then Furnace Brazed into One Solid Piece |
| Average Holding Power - Maximum | 35 psi |
| Compatible Product Type | Inside Diameter Grinders |
| Overall Diameter | 9-1/4 in |
| Package Quantity | 1 |
