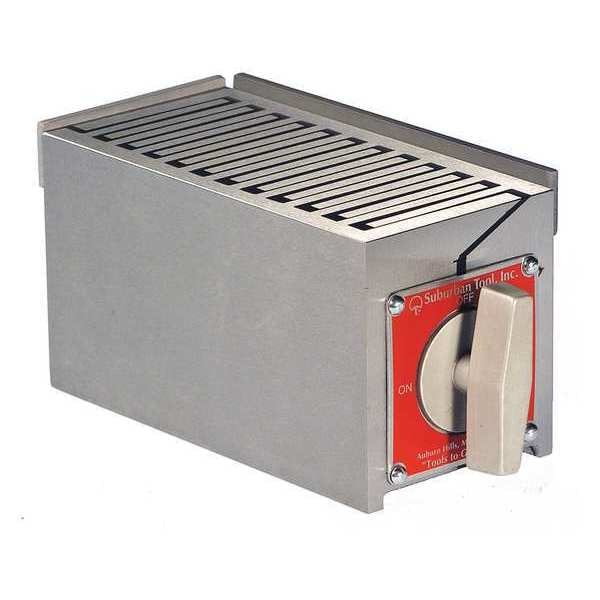

Mag. Chuck, 3inH, 2-3/4, 5-7/16in
| Item | Magnetic Chuck |
|---|---|
| Surface Width | 2-3/4 in |
| Separator Size | 1/16 in |
| Base Width | 2-3/4 in |
| Magnet Type | Permanent Alnico |
| Surface Length | 5-7/16 in |
| Avg. Max. Holding Power | 10 to 18 psi |
| Parallelism | 0 in |
| Compound Style | No |
| Pole Type | Fine |
| Overall Height | 3 in |
| Shape | Rectangular |
| Pole Size | 1/2 in |
| Base Length | 5-7/16 in |
| Pole Alignment | Transverse |
| Features | Bottom Surface is Relieved 1/8 in to Minimize Loss of Magnetism, Top and Bottom Magnetize Simultaneously |
| Squareness | 0 in |
| Average Holding Power - Maximum | 18 psi |
| Package Quantity | 1 |
