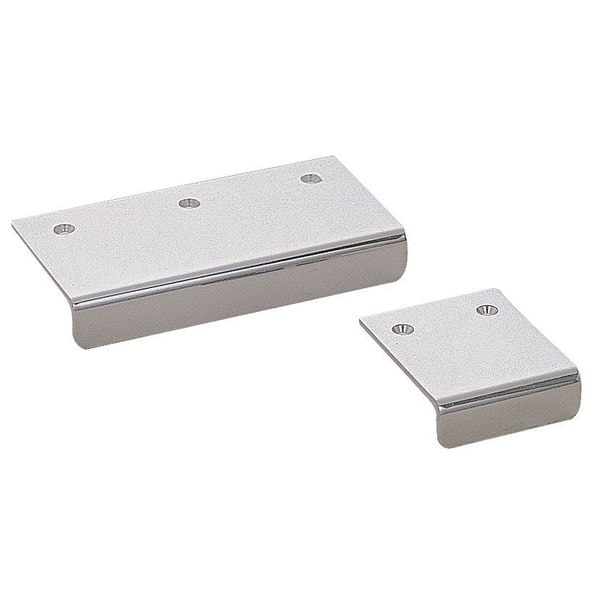

Edge Pull Handle, 304 Stainless Steel, Polished, Threaded Holes
| Finish | Mirror |
|---|---|
| Color | Silver |
| Material | Stainless Steel |
| Mounting Type | Threaded Holes |
| Projection | 2-3/8 in |
| Item | Pull Handle |
| Load Rated (Y/N) | N |
| Overall Length | 4-3/4 in |
| Grip Length | 4-23/32 in |
| Screw Size | 3.5 mm x 20 mm |
| Hardware | Included |
| Grip Height | 3/4 in |
| Grip Thickness | 3/32 in |
| Grip Dia. | 3/32 in |
| Overall Width | 3/4 in |
| Degree Offset | Not Applicable |
| Cutout Width | Not Applicable |
| Mounting Hole Center to Center | 3-17/32 in |
| Includes | Screws |
| Product Type | Edge Pull Handle |
| Cutout Length | Not Applicable |
| Handle Shape | Edge |
| Cutout Depth | Not Applicable |
| Grip Offset | 2-3/8 in |
| Projection - Folded | Not Applicable |
| Load Capacity - Parallel | Not Applicable |
| Projection Type | Non-Recessed |
| Number of Mounting Holes | 2 |
| Load Capacity - Perpendicular | Not Applicable |
| Count | 5 |
| Mounting Hole Center to Center - Vertical | Not Applicable |
| Folding Type | Fixed |
| Grip Shape | Flat |
| ANSI/BHMA Finish | Bright Stainless Steel |
| Includes Hardware | Hardware Included |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Grip Diameter | Not Applicable |
| Standards | NSF Certified, RoHS Compliant |
| Load Rating | Load Rated |
| Grip Width | 3/4 in |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
