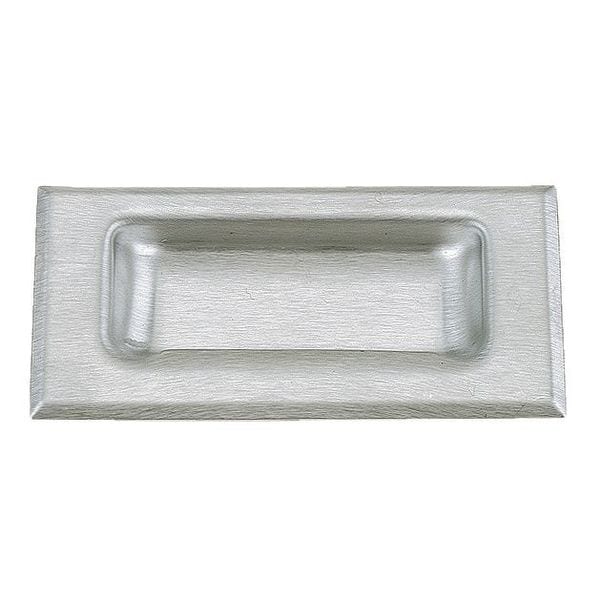

Recessed Pull Handle, Stainless Steel, Satin, Threaded Holes
| Finish | Satin |
|---|---|
| Color | Silver |
| Material | Stainless Steel |
| Mounting Type | Threaded Holes |
| Projection | 1/8 in |
| Item | Recessed Pull Handle |
| Hardware | Included |
| Load Rated (Y/N) | N |
| Screw Size | M4 |
| Grip Length | 3-17/32 in |
| Overall Length | 4-13/16 in |
| Cutout Height | 1-37/64 in |
| Cutout Width | 3-17/32 in |
| Overall Width | 2-1/2 in |
| Mounting Hole Center to Center | 4-1/32 in |
| Grip Thickness | Not Applicable |
| Degree Offset | Not Applicable |
| Includes | Screws |
| Count | 20 |
| Number of Mounting Holes | 2 |
| Includes Hardware | Hardware Included |
| Projection - Folded | Not Applicable |
| Projection Type | Recessed |
| Grip Shape | Rectangular |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Mounting Hole Center to Center - Vertical | Not Applicable |
| Cutout Depth | 5/8 in |
| Product Type | Tray Pull Handle |
| Grip Diameter | Not Applicable |
| Handle Shape | Tray |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Grip Offset | Not Applicable |
| Folding Type | Fixed |
| Load Capacity - Perpendicular | Not Applicable |
| Cutout Length | 1-19/32 in |
| Grip Width | 5/8 in |
| Load Rating | Load Rated |
| Standards | NSF Certified, RoHS Compliant |
| Load Capacity - Parallel | Not Applicable |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
