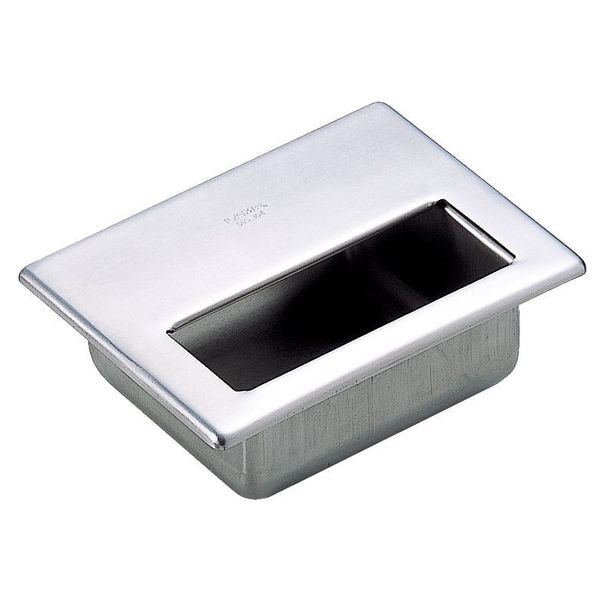

Recessed Pull Handle, Stainless Steel, Satin, Threaded Holes
| Finish | Satin |
|---|---|
| Color | Silver |
| Material | Stainless Steel |
| Mounting Type | Threaded Holes |
| Projection | 3/16 in |
| Item | Recessed Pull Handle |
| Screw Size | M5 |
| Overall Length | 6 in |
| Cutout Height | 3-55/64 in |
| Grip Length | 4-13/32 in |
| Vert. Mounting Hole Ctr. to Ctr. | 1-37/64 in |
| Cutout Width | 4-17/32 in |
| Hardware | Included |
| Mounting Hole Center to Center | 5-7/32 in |
| Load Rated (Y/N) | N |
| Overall Width | 4-1/2 in |
| Includes | Nuts |
| Degree Offset | Not Applicable |
| Grip Thickness | Not Applicable |
| Grip Offset | Not Applicable |
| Standards | NSF Certified, REACH Compliant 209 10/30/20, RoHS Compliant |
| Load Rating | Load Rated |
| Cutout Depth | 1-5/8 in |
| Count | 5 |
| Projection - Folded | Not Applicable |
| Product Type | Tray Pull Handle |
| Folding Type | Fixed |
| Grip Shape | Rectangular |
| Mounting Hole Center to Center - Vertical | 1-19/32 in |
| Handle Shape | Tray |
| Grip Width | 2-3/16 in |
| Grip Diameter | Not Applicable |
| Number of Mounting Holes | 4 |
| Cutout Length | 3-7/8 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Mounting Hole Center to Center - Inner | Not Applicable |
| Load Capacity - Parallel | Not Applicable |
| Projection Type | Recessed |
| Load Capacity - Perpendicular | Not Applicable |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |
