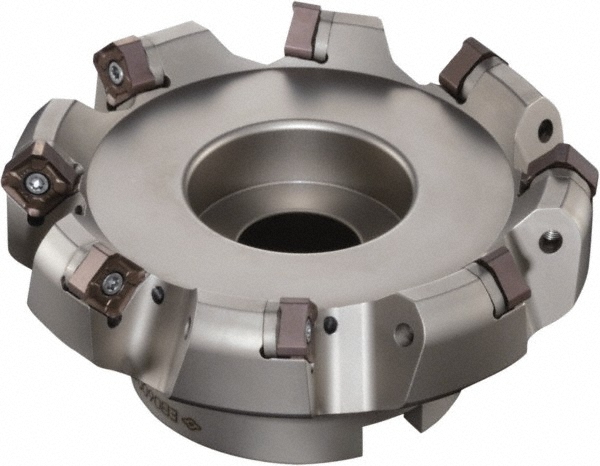

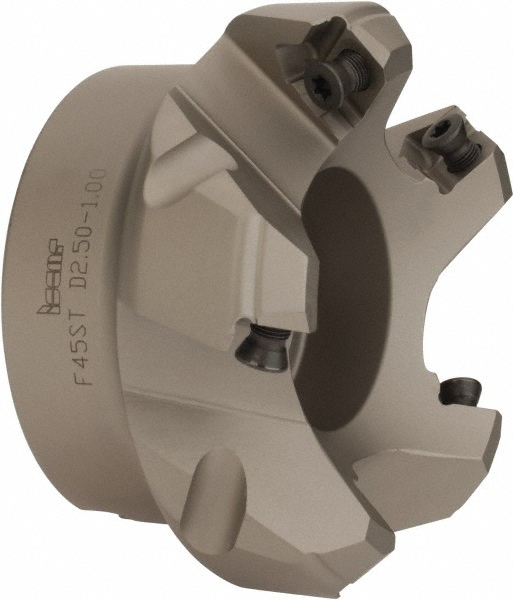

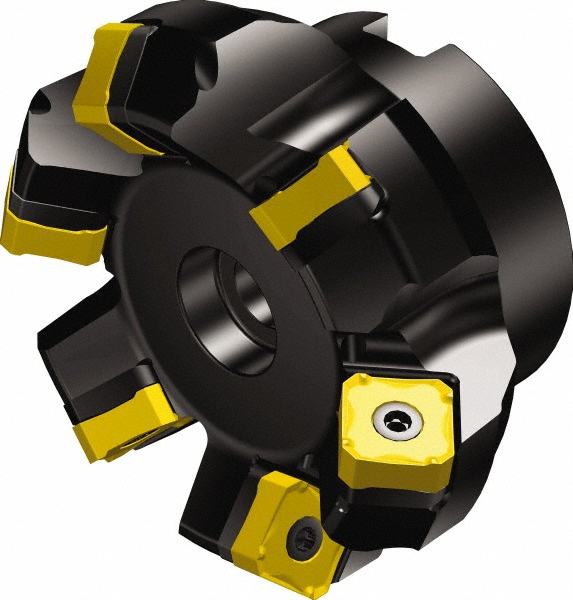

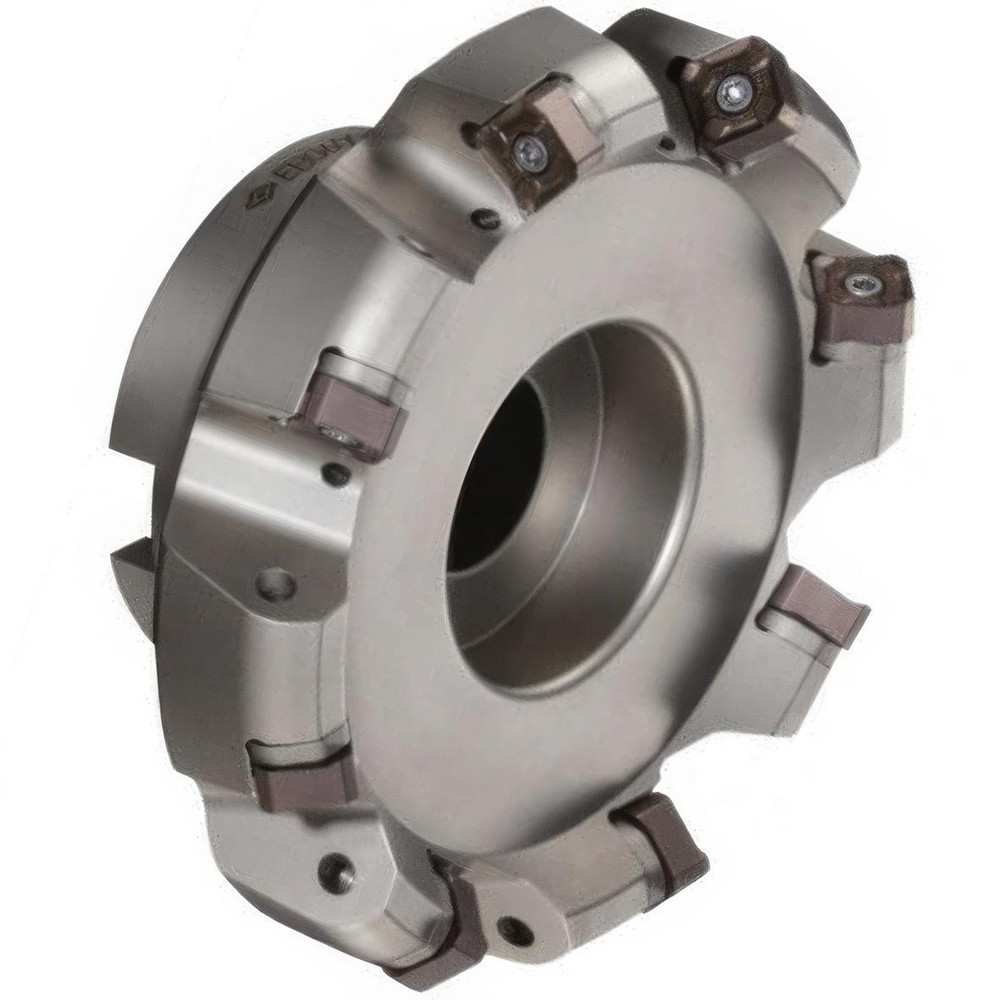

Takes 5 Inserts, ONMT 05T6\xB6SNMT 13T6\xB6XNET 13T6 Insert, Right Hand Cut, Through Coolant, Series DualMill
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0670 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Compatible Insert Size Code | xB6SNMT 13T6; xB6XNET 13T6; ONMT 05T6 |
| Cutter Style | DGCM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Rake Angle | -10 (Radial);-5 (Axial) |
| Series | DualMill |
| Hub Diameter (Inch) | 1-3/4 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.375 |
| Keyway Width (Inch) | 3/8 |
| Overall Height (Decimal Inch) | 1.7500 |
| Maximum Body Diameter (Decimal Inch) | 3.0670 |
| Pitch Type | Fine |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; K; M; N |
| Counterbore Diameter (Decimal Inch) | 0.7970 |
| Complete Insert Compatibility | ONMT 05T6ANER; SNMT 13T6ANER; XNET 13T6ANEN |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
| UNSPSC Code | 23291600 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 53966842 |
